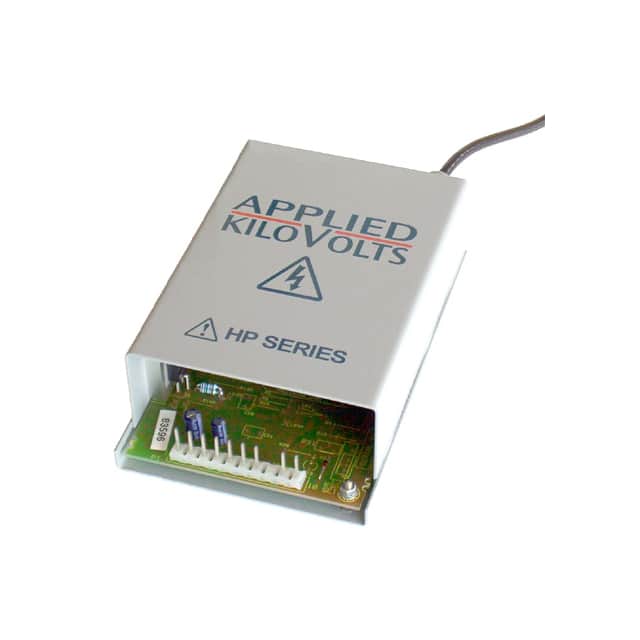

The Applied Kilovolts Ltd. HP030RIP020 is a precision 10W high voltage module designed for demanding applications. This enclosed, high voltage DC DC converter offers a maximum output voltage of 30kV and a maximum output current of 0.25mA, providing 7.5W of power.
Key electrical specifications include a low ripple of less than 300mV (pk-pk) at full load and a temperature coefficient of less than 20ppm/°C. The unit is designed for chassis mounting and operates within a temperature range of 0°C to 50°C.
Constructed with conservatively rated components and proven linear regulator techniques, this power supply is short circuit and flashover proof. It is suitable for applications requiring stable, low-ripple high voltage sources, such as photomultiplier tubes, mass spectrometers, and electron microscopes. The unit is UL and cURus recognized.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum output voltage is 30kV.
The power rating is 7.5W.
The operating temperature range is 0°C to 50°C.
It is designed for chassis mounting.
The ripple at full load is less than 300mV (pk-pk).
