| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

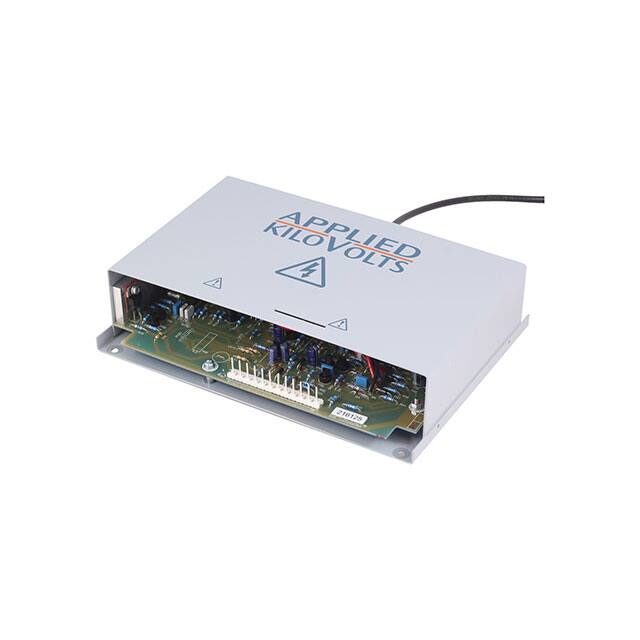

The Applied Kilovolts Ltd. HP010RAA025 is a precision 10W high voltage DC DC converter module. It offers an output voltage range of 20V to 10kV with a maximum output current of 1mA. This enclosed unit is designed for chassis mounting.
Key specifications include a low ripple of less than 50mV (pk-pk) and a temperature coefficient of less than 25ppm/°C. The operating temperature range is from 0°C to 50°C. The dimensions are 155.0mm x 216.0mm x 52.0mm.
This converter is suitable for applications requiring stable, low-ripple high voltage sources. It is pin compatible with other ranges and features short circuit and flashover proof design. The unit is UL recognized as a component.
Applications include photomultiplier tubes, mass spectrometers, electron microscopes, nuclear instruments, surface science analysis equipment, and microchannel plates.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage ranges from 20V to 10kV.
The output current is 1mA.
The power rating is 10W.
The operating temperature range is 0°C to 50°C.
It is designed for chassis mount installation.
The dimensions are 155.0mm x 216.0mm x 52.0mm.
