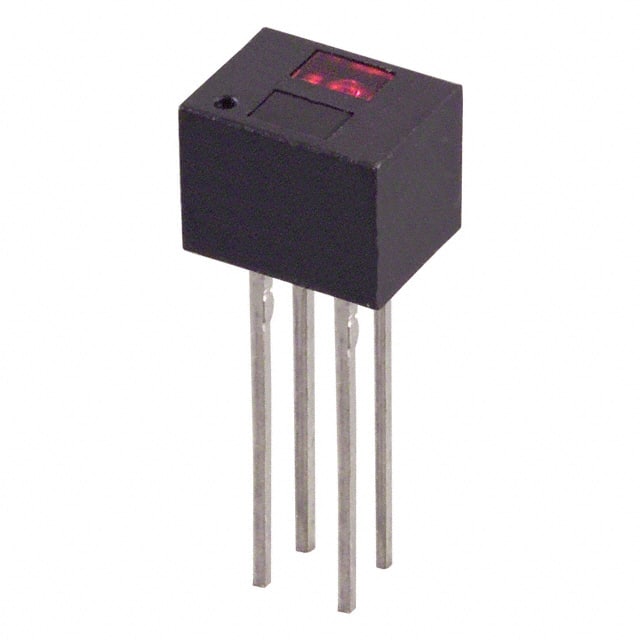

HOA1397-002 The Honeywell HOA1397-002 is a reflective optical sensor with a phototransistor output. It offers a sensing distance of 0.050" (1.27mm) and operates with a maximum collector-emitter voltage of 30V.
Mfr Part #:

HOA1397-002

Available from 1 distributors
Mfr Name: Honeywell
Honeywell
The Honeywell HOA1397-002 is a reflective optical sensor with a phototransistor output. It offers a sensing distance of 0.050" (1.27mm) and operates with a maximum collector-emitter voltage of 30V.
✓ Total Stock: 52 pcs
$ Price Range: $1.50

HOA1397-002 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
52 pcs
On Request
52 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HOA1397-002 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Continuous Forward Current
Current
Lead Spacing
Mounting Type
Output Type
Response Time
Reverse Voltage
Sensing Distance
Sensing Method
Storage Temperature
Tape & Reel
Voltage
View Similar Products (0)

HOA1397-002 Description

Short technical summary and product information.

The Honeywell HOA1397-002 is a reflective optical sensor designed for detecting diffused surfaces. It features a phototransistor output and operates with a maximum collector-emitter voltage of 30V and a continuous forward current of 60mA. The sensor has a sensing distance of 0.050 inches (1.27mm).



This component is housed in a 4-DIP module and utilizes a through-hole mounting type, making it suitable for various PCB applications. The operating temperature range is from -40°C to 85°C, and it has a response time of 15µs.



The HOA1397 series consists of an infrared emitting diode and an NPN silicon phototransistor. The detector responds to radiation from the IRED only when a reflective object passes within its field of view. The housing material is polyester, and recommended cleaning agents are methanol and isopropanol.

HOA1397-002 Quick Information

Product Type: Reflective Optical Sensor
Canonical Name: HOA1397-002 Reflective Optical Sensor
Subcategory: Reflective - Analog Output

HOA1397-002 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

HOA1397-002 Estimated Pricing

Qty Low High
1+ $1.50 $1.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

HOA1397-002 Features

  • Phototransistor output for sensing applications.
  • Sensing distance of 0.050" (1.27mm).
  • Maximum collector-emitter voltage of 30V.
  • Maximum continuous forward current of 60mA.
  • Through-hole mounting in a 4-DIP module.

HOA1397-002 Applications

  • Used for object detection in automation systems.
  • Suitable for proximity sensing in robotics.
  • Ideal for presence detection in security systems.
  • Employed in level sensing for liquid tanks.
  • Utilized in reflective optical encoders.

HOA1397-002 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the sensing distance of the HOA1397-002?

The sensing distance is 0.050" (1.27mm).

What type of output does the HOA1397-002 have?

The HOA1397-002 has a phototransistor output.

What is the maximum collector-emitter voltage for the HOA1397-002?

The maximum collector-emitter voltage is 30V.

What is the maximum continuous forward current for the HOA1397-002?

The maximum continuous forward current is 60mA.

What is the operating temperature range of the HOA1397-002?

The operating temperature range is -40°C to 85°C.

How is the HOA1397-002 mounted?

The HOA1397-002 is mounted using the through-hole method.
