| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Spacing (Pitch) | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

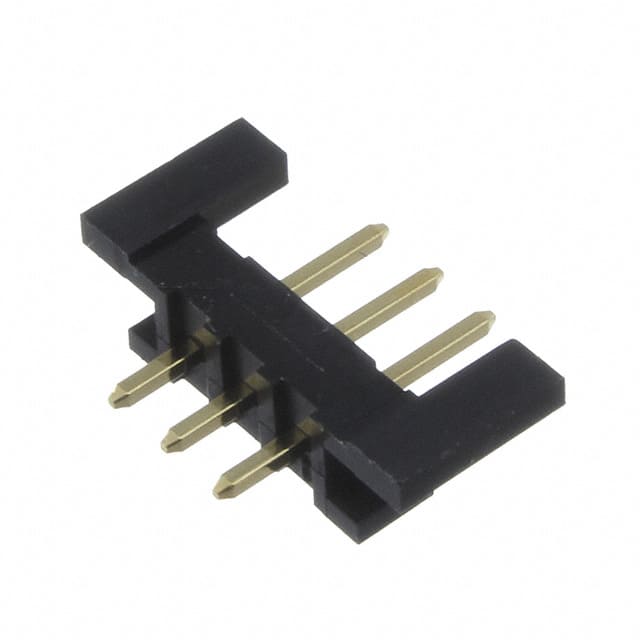

The Hirose HNC2-2.5P-3DS(02) is a 3-position, single-row unshrouded header connector with a 2.5mm pitch. Designed for through-hole mounting with solder termination, it provides reliable board-to-board or cable-to-board connections.
The header features brass contacts with a gold plating thickness of 8µin (0.203µm), ensuring excellent conductivity and corrosion resistance. The insulation is made from black polyamide (nylon) with a UL94 V-0 flammability rating, suitable for high-temperature environments. The operating temperature range is -55°C to 85°C, and the voltage rating is 250V.
The connector has a push-pull fastening mechanism and an overall contact length of 11.00mm (0.433 inches), with a contact length of 5.00mm (0.197 inches). The insulation height is 6.50mm (0.256 inches). This component is ideal for general-purpose industrial, consumer, and automotive applications requiring a compact and durable interconnect solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.78 | $0.78 |
| 10+ | $0.66 | $0.66 |
| 25+ | $0.59 | $0.59 |
| 100+ | $0.56 | $0.56 |
| 300+ | $0.50 | $0.50 |
| 1,000+ | $0.48 | $0.48 |
| 2,500+ | $0.44 | $0.44 |
| 5,000+ | $0.43 | $0.43 |
| 10,000+ | $0.42 | $0.42 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 3 positions.
The pitch is 2.50mm (0.098 inches).
Through Hole.
250V.
-55°C to 85°C.
Gold, with a thickness of 8.00µin (0.203µm).
Black polyamide (nylon) with UL94 V-0 rating.
