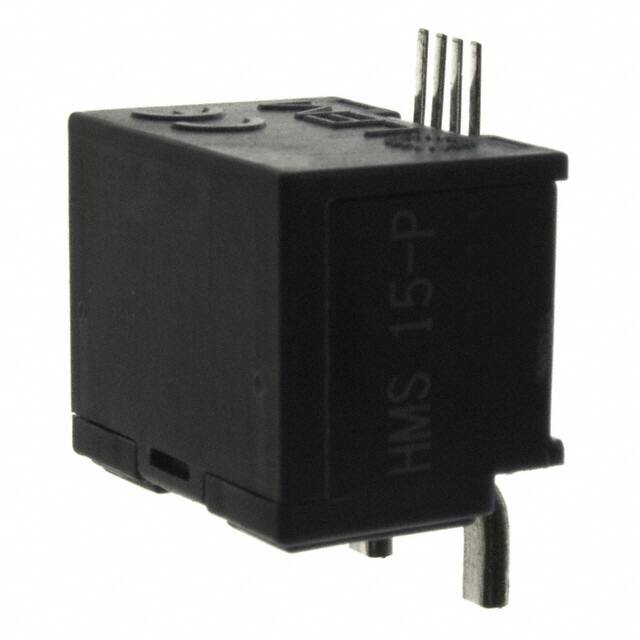

HMS 15-P The LEM USA Inc. HMS 15-P is a Hall Effect current sensor designed for 15A AC/DC measurements. It operates with a 5V supply and features a ±1% accuracy.
Mfr Part #:

HMS 15-P

Available from 1 distributors
Mfr Name: LEM USA Inc.
LEM USA Inc.
The LEM USA Inc. HMS 15-P is a Hall Effect current sensor designed for 15A AC/DC measurements. It operates with a 5V supply and features a ±1% accuracy.
✓ Total Stock: 780 pcs
$ Price Range: $1.50

HMS 15-P Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
780 pcs
On Request
780 pcs On Request 1 On Request On Request 1124+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HMS 15-P Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accuracy
Current
For Measuring
Frequency
Linearity
Mounting Type
Number of Channels
Operating Temperature
Output
Polarization
Response Time
Sensor Type
Storage Temperature
Tape & Reel
Voltage
View Similar Products (0)

HMS 15-P Description

Short technical summary and product information.

The LEM USA Inc. HMS 15-P is a Hall Effect, Open Loop current sensor capable of measuring up to 15A AC/DC. It operates on a 5V supply with a maximum supply current of 19mA. The sensor offers a high accuracy of ±1% and a linearity of ±0.5%, with a response time of 5µs.



Designed for versatility, the HMS 15-P supports bidirectional polarization and operates within a temperature range of -40°C to 85°C. Its surface mount package makes it suitable for various PCB applications. The output signal is ratiometric and voltage-based, with a frequency response from DC up to 50kHz.



This component is suitable for applications requiring precise current monitoring in both alternating and direct current systems. Its robust specifications and compact module package facilitate integration into diverse electronic designs.

HMS 15-P Quick Information

Product Type: Current Sensor
Series: HMS
Canonical Name: Hall Effect Current Sensor
Subcategory: Hall Effect Sensor

HMS 15-P Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

HMS 15-P Estimated Pricing

Qty Low High
1+ $1.50 $1.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

HMS 15-P Features

  • Measures 15A AC/DC current.
  • Hall Effect, Open Loop sensor type.
  • Operates at 5V supply voltage.
  • Features ±1% accuracy.
  • Surface Mount package type.

HMS 15-P Applications

  • Suitable for AC/DC current sensing.
  • Used in power supply monitoring.
  • Applicable in motor control systems.
  • Ideal for industrial automation.

HMS 15-P FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current sensing range of the HMS 15-P?

The HMS 15-P can sense currents up to 15A.

What type of sensor is the HMS 15-P?

The HMS 15-P is a Hall Effect, Open Loop sensor.

What is the operating voltage for the HMS 15-P?

The operating voltage for the HMS 15-P is 5V.

What is the accuracy of the HMS 15-P current sensor?

The accuracy of the HMS 15-P is ±1%.

What is the operating temperature range for this sensor?

The operating temperature range is -40°C to 85°C.

How is the HMS 15-P mounted?

The HMS 15-P is designed for Surface Mount.
