| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Axis | |
| For Measuring | |
| Interface | |
| Measuring Range | |
| Operating Temperature | |
| Resolution | |
| Storage Temperature | |
| Supply Current | |
| Supply Voltage | |
| Type |

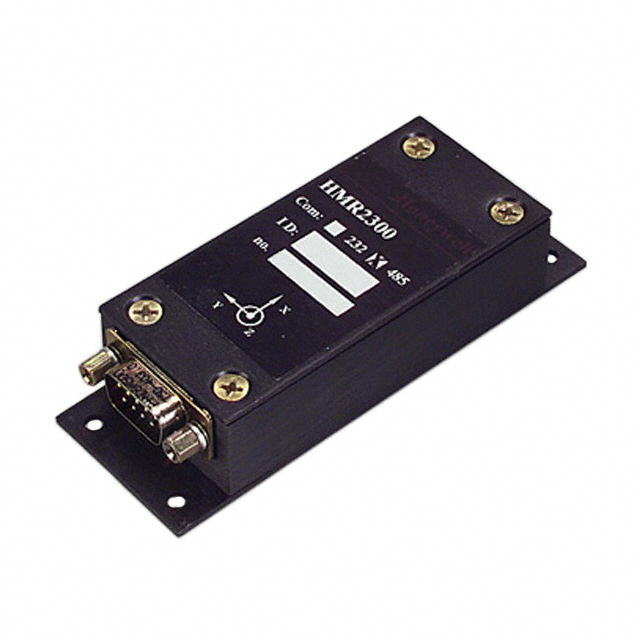

The Honeywell HMR2300-D21-485 is a three-axis smart digital magnetometer that detects the strength and direction of incident magnetic fields. Utilizing three magneto-resistive sensors oriented orthogonally, it measures the X, Y, and Z vector components. The sensor outputs are converted to 16-bit digital values via an internal delta-sigma A/D converter.
Key specifications include a magnetic field range of ±2 Gauss with a resolution of 67 µGauss. The device offers selectable sample rates from 10 to 154 samples per second and features RS-485 serial data interfaces. Its operating temperature range is -40°C to 85°C.
Applications for this magnetometer include attitude reference, compassing and navigation, traffic and vehicle detection, anomaly detection, laboratory instrumentation, and security systems. The unit is housed in a module with a case, providing a robust solution for various environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The magnetic field measuring range is ±2 Gauss.
The resolution is 67µGauss.
The operating temperature range is -40°C to 85°C.
The HMR2300-D21-485 uses an RS-485 interface.
The device measures the X, Y, and Z axes.
The supply voltage is between 6.5 and 15 Volts.
The package type is a Module with Case.
