| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
72 pcs
|
72 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Construction | |
| Gain | |
| Mounting Type | |
| Noise Figure | |
| RF Type | |
| Supplier Device Package | |
| Supply Current | |
| Supply Voltage |

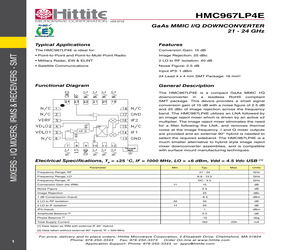

The HMC967LP4E is an RF/Microwave Down Converter manufactured by Hittite Microwave Corporation. This component is designed for general-purpose RF applications and operates within a frequency range of 21GHz to 24GHz for RF input and 0MHz to 3.5GHz for IF output.
Key electrical characteristics include a typical gain of 15dB and a noise figure of 2.5dB. The device operates with a supply voltage of 3.5V and draws a typical current of 170mA. It is tunable for local oscillator applications.
The HMC967LP4E is housed in a 24-QFN (4x4mm) package with an exposed pad, suitable for surface mounting. The operating temperature range is from -55°C to 85°C. This component is RoHS3 compliant and lead-free.
This downconverter is ideal for applications requiring high-frequency signal conversion within the specified bands.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The RF input frequency range is 21 GHz to 24 GHz.
The IF frequency range is 0 to 3.5 GHz.
The typical gain is 15 dB.
The noise figure is 2.5 dB.
It uses a 24-VFQFN exposed pad package.
Yes, it is RoHS3 compliant.
-55°C to 85°C.
