| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Circuit Type | |
| Current | |
| Function | |
| LO Frequency | |
| Material | |
| Mounting Type | |
| Noise Figure | |
| P1dB | |
| RF Frequency | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Voltage |
The HMC908ALC5 from Analog Devices is a compact Gallium Arsenide (GaAs) Monolithic Microwave Integrated Circuit (MMIC) I/Q downconverter. This device is designed for operation in the 9 GHz to 12 GHz frequency range, making it suitable for various RF applications.
Key electrical specifications include a typical conversion gain of 11 dB at 100 MHz IF output, a noise figure of 2 dB, and an image rejection of 25 dB at 100 MHz. It also offers LO to RF isolation of 46 dB and LO to IF isolation of 26 dB. The IF output frequency ranges from DC to 3.5 GHz. The device operates at a voltage of 4V and draws a current of 100 mA.

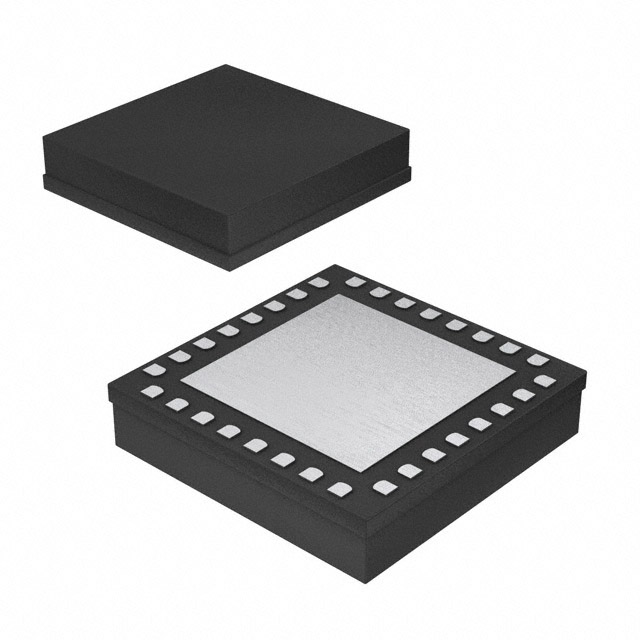

Packaged in a 32-lead ceramic leadless chip carrier (CLCC), the HMC908ALC5 utilizes a surface mount type for easy integration into circuit designs. Its MMIC architecture offers a smaller alternative to hybrid assemblies and supports surface-mount manufacturing techniques.
Applications for the HMC908ALC5 include point-to-point radios, point-to-multipoint radios, very small aperture terminals (VSATs), test equipment, sensors, and military end-use.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical conversion gain is 11 dB at an IF output frequency of 100 MHz.
The noise figure is 2 dB.
The image rejection is 25 dB typical at an IF output frequency of 100 MHz.
The RF frequency range is 9 GHz to 12 GHz, and the LO frequency range is 8.5 GHz to 15.5 GHz.
The HMC908ALC5 is in a 32-lead ceramic leadless chip carrier (CLCC) and is a surface mount device.
The typical current consumption is 100 mA.
