| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,135 pcs
|
2135 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,135 pcs
|
2135 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Circuit | |
| Control Voltage | |
| ESD Rating (CDM) | |
| ESD Rating (HBM) | |
| Frequency Range | |
| IIP3 | |
| IP3 | |
| Impedance | |
| Insertion Loss | |
| Isolation | |
| Mounting Type | |
| Operating Temperature | |
| P0.1dB | |
| P1dB | |
| RF Settling Time | |
| RF Type | |
| Supplier Device Package | |
| Supplier Package | |
| Switching Time | |
| Tape & Reel | |
| Test Frequency | |
| Topology | |
| Voltage |
The HMC8038LP4CETR is a high-isolation, nonreflective, Silicon Single-Pole Double-Throw (SPDT) RF switch designed for operation from 0.1 GHz to 6.0 GHz. It features a low insertion loss of 0.8 dB typical and high isolation of 60 dB typical, making it suitable for demanding RF applications.
This switch handles power up to 34 dBm through the path and 29 dBm in the terminated path. It offers excellent linearity with a P0.1dB of 35 dBm typical and an input third-order intercept (IP3) of 60 dBm typical. The device operates on a single positive supply voltage ranging from 3.3 V to 5 V and is compatible with 1.8 V control logic.

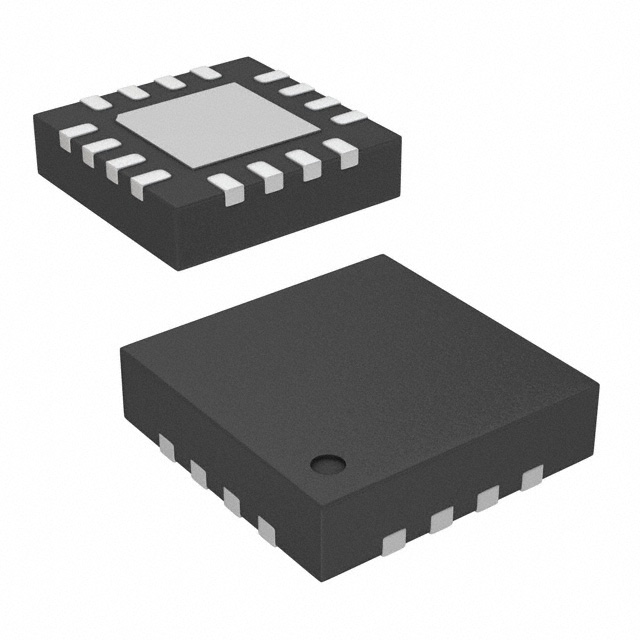

Designed for surface mounting, the HMC8038LP4CETR comes in a compact 16-lead LFCSP package measuring 4 mm x 4 mm. It operates across a wide temperature range of -40°C to 105°C. The switch also includes ESD protection rated at 4 kV HBM and 1.25 kV CDM.
Applications for the HMC8038LP4CETR include cellular and wireless infrastructure, automotive telematics, mobile radios, and test equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The HMC8038LP4CETR operates on a single positive supply voltage from 3.3 V to 5 V.
The HMC8038LP4CETR is supplied in a 16-lead LFCSP (4x4) package for surface mounting.
The HMC8038LP4CETR operates in a temperature range of -40°C to 105°C.
The HMC8038LP4CETR is RoHS3 Compliant.
The HMC8038LP4CETR RF switch operates from 100 MHz to 6 GHz.
The typical insertion loss for the HMC8038LP4CETR is 0.8 dB.
The HMC8038LP4CETR provides typical isolation of 60 dB.
