| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | WO74 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Frequency | |
| Mounting Type | |
| Number of Mixers | |
| Pump Type | |
| RF Type | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |
The HMC798LC4TR from Analog Devices is a GaAs MMIC Sub-Harmonically Pumped (x2) Mixer. It operates within a wide RF frequency range of 24 to 34 GHz, with an LO frequency range of 12 to 17.75 GHz and an IF range from DC to 4 GHz. This mixer features an integrated LO amplifier requiring a nominal +4 dBm input drive.
Key electrical specifications include a typical conversion loss of 10-12 dB and excellent 2LO to RF isolation of 20-25 dB. The input IP3 is typically 19-22 dBm, and the 1 dB compression point is 10-12 dBm. The device operates on a single positive supply of +5V, drawing a typical current of 95-125mA.

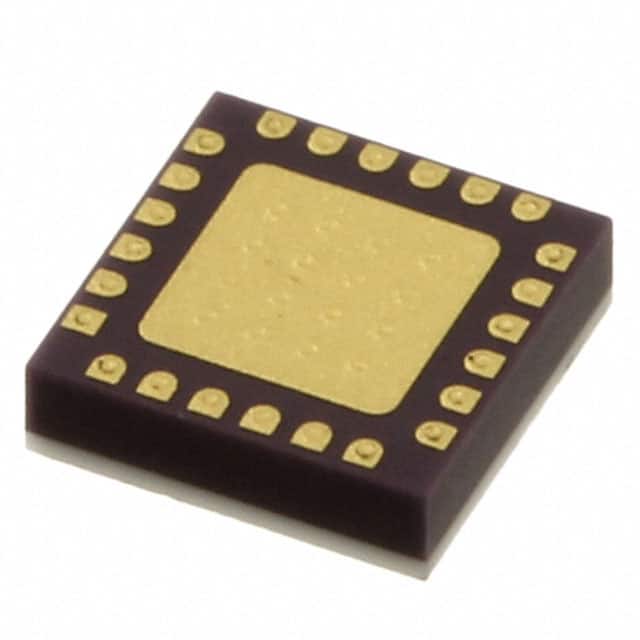

The HMC798LC4TR is housed in a 24-lead 4x4mm SMT package, eliminating the need for wire bonding and enabling surface mount manufacturing techniques. The RF and LO ports are matched to 50 Ohms for ease of integration into designs.
This mixer is suitable for applications such as point-to-point radios, point-to-multi-point radios, VSAT systems, test equipment, sensors, military end-use, and SATCOM.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.77 | $5.77 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The RF frequency range is 24 to 34 GHz, the LO frequency range is 12 to 17.75 GHz, and the IF frequency range is DC to 4 GHz.
The typical conversion loss is 10 to 12 dB.
The nominal LO drive requirement is +4 dBm.
The mixer operates on a single positive supply of +5V.
It is in a 24-lead 4x4mm SMT package, specifically a 24-TFQFN Exposed Pad.
