| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
244 pcs
|
244 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request | |
|
35 pcs
|
35 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Frequency | |
| Gain | |
| Input/Output Impedance | |
| Lead Spacing | |
| Mounting Type | |
| Noise Figure | |
| Output Third-Order Intercept (OIP3) | |
| P1dB | |
| RF Type | |
| Supplier Device Package | |
| Supplier Package | |
| Test Frequency | |
| Voltage |
The HMC788ALP2ETR from Analog Devices is a monolithic microwave integrated circuit (MMIC) gain block amplifier designed for RF applications. It utilizes gallium arsenide (GaAs) pseudomorphic high electron mobility transistor (pHEMT) technology, providing a wide operational frequency range from 0.01 GHz to 10 GHz.
This amplifier features a typical gain of 14 dB and is internally matched to 50 Ω, simplifying integration into existing designs. Key electrical characteristics include a typical 1 dB compression point (P1dB) of 20 dBm and an output third-order intercept (OIP3) of 33 dBm. It operates from a typical supply voltage of 5 V and consumes approximately 76 mA of current.

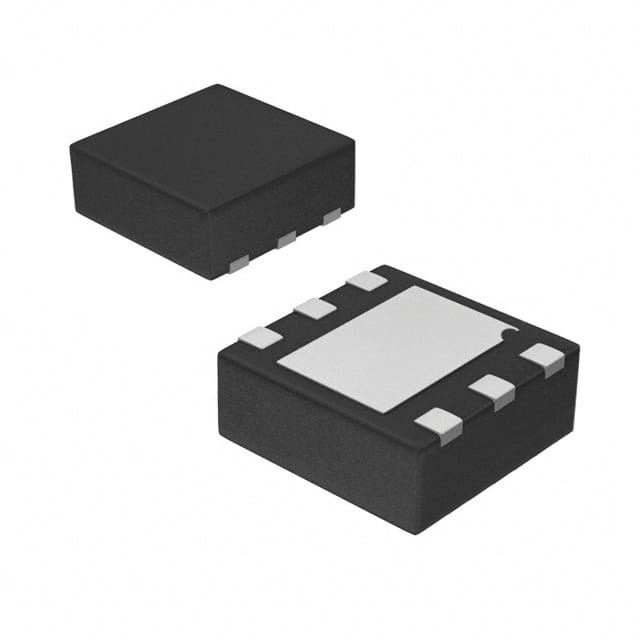

The HMC788ALP2ETR is housed in a compact 2 mm × 2 mm, 6-lead lead frame chip scale package (LFCSP). It is designed for surface mount applications, making it suitable for space-constrained electronic designs.
This MMIC amplifier is well-suited for applications such as cellular, 3G, LTE, WiMAX, and 4G LO driver circuits, as well as microwave radio and test and measurement equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operational frequency range is 0.01 GHz to 10 GHz.
The typical gain is 14 dB.
The typical 1 dB compression point (P1dB) is 20 dBm.
The typical supply voltage is 5 V.
It is available in a 6-VDFN Exposed Pad, CSP package, also referred to as 6-LFCSP (2x2).
