| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | 1804 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Frequency | |
| Mounting Type | |
| Noise Figure | |
| Number of Mixers | |
| Process | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Topology |
The HMC787ALC3B is a general-purpose, double-balanced mixer fabricated in a GaAs MESFET process. It operates across a frequency range of 3 GHz to 10 GHz and is suitable for upconversion or downconversion applications.
Key electrical specifications include a typical conversion loss of 9 dB at 3 GHz to 9 GHz, and a typical LO to RF isolation of 43 dB within the same frequency band. The mixer also provides a typical RF to IF isolation of 26 dB and an input IP3 of 24 dBm. It features a wide IF frequency range from DC to 4 GHz.

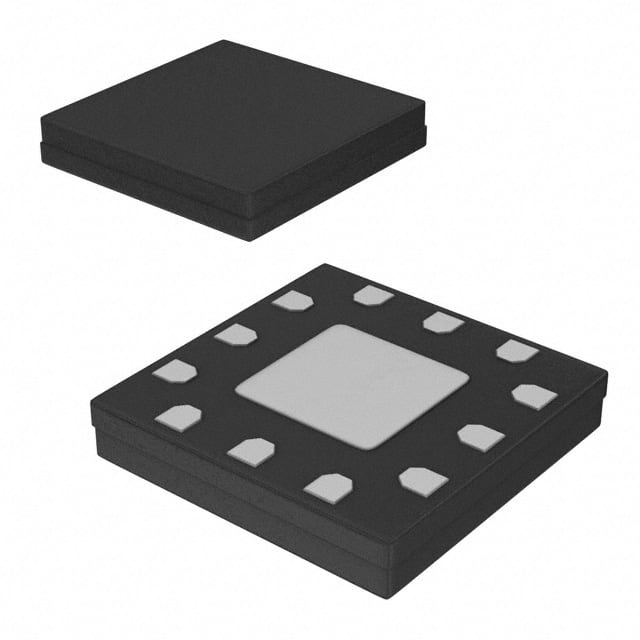

This mixer is housed in a 12-terminal, ceramic, leadless chip carrier (LCC) package, compatible with surface-mount manufacturing techniques. Its applications include microwave radio, ISM band and UWB radio, test equipment, sensors, and military end-use.
The HMC787ALC3B requires no external components or matching circuitry, simplifying integration into designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.77 | $5.77 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The HMC787ALC3B mixer operates from 3 GHz to 10 GHz.
The typical conversion loss for the HMC787ALC3B mixer is 9 dB at 3 GHz to 9 GHz.
The typical LO to RF isolation for the HMC787ALC3B mixer is 43 dB at 3 GHz to 9 GHz.
The HMC787ALC3B mixer supports a wide IF frequency range from DC to 4 GHz.
The HMC787ALC3B mixer is supplied in a 12-terminal, ceramic, leadless chip carrier (LCC) package.
The HMC787ALC3B mixer is designed for surface mount installation.
