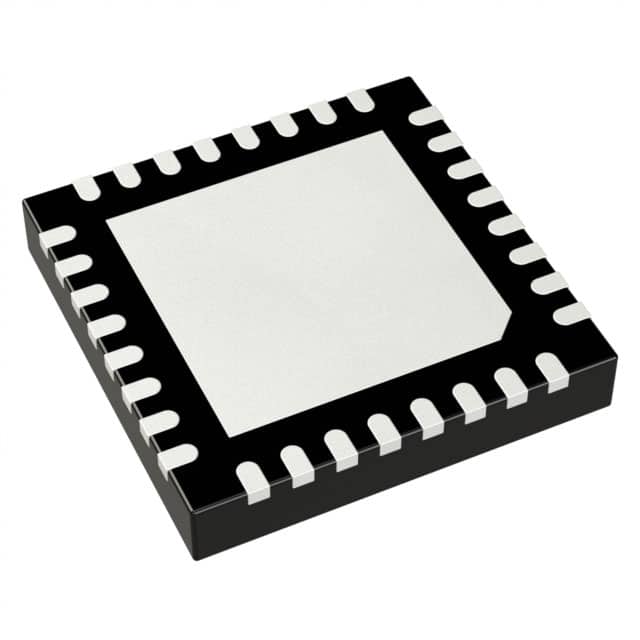

The HMC735LP5E is a GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC VCO manufactured by Analog Devices. It integrates resonators, negative resistance devices, and varactor diodes, offering a divide-by-4 frequency output. This device provides excellent phase noise performance over temperature, shock, and process variations due to its monolithic structure.
The VCO operates in the 10.5 to 12.2 GHz frequency range, with a divided output of 2.625 to 3.05 GHz. It delivers a typical power output of +17 dBm from a +5V supply. The prescaler function can be disabled to conserve current if not needed. The voltage-controlled oscillator is packaged in a leadless 32-lead 5x5mm QFN surface mount package and requires no external matching components.
Typical applications for the HMC735LP5E include Point-to-Point/Multi-Point Radio, Test Equipment & Industrial Controls, SATCOM, and Military End-Use. Its robust design and integrated features make it suitable for demanding RF applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $27.44 | $27.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The HMC735LP5E operates in the 10.5 to 12.2 GHz frequency range.
The typical output power for RFOUT is 14 to 21 dBm.
The SSB phase noise is -100 dBc/Hz at a 100 kHz offset.
The supply current is typically between 180 and 240 mA.
The HMC735LP5E is supplied in a 32-VFQFN Exposed Pad package.
The HMC735LP5E is a surface mount device.
