| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
169 pcs
|
169 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Attenuation Value | |
| Frequency Range | |
| Impedance | |
| Mounting Type | |
| Package / Case | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient |
The HMC658LP2E from Analog Devices is a wideband fixed value SMT 50 Ohm matched attenuator offering 20 dB of attenuation. This passive attenuator is designed for applications requiring extremely flat attenuation and excellent VSWR across a wide frequency range, from DC up to 25 GHz.
Key electrical specifications include a typical return loss of 12 dB and a minimum return loss of 7 dB. The attenuation tolerance is ±2.0 dB over temperature, with a typical temperature coefficient of 0.0004 dB/°C. It can handle RF input power up to +25 dBm (CW).

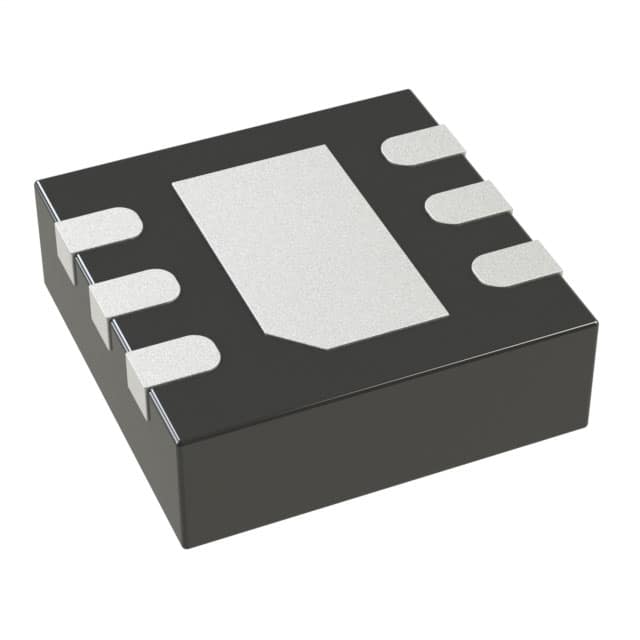

This attenuator is ideal for military, test equipment, and other wideband applications. It is compatible with high volume surface mount manufacturing techniques and comes in a compact 6-lead 2x2mm SMT package (6-TDFN Exposed Pad).
Typical applications include fiber optics, microwave radio, military and space systems, test and measurement equipment, and scientific instruments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The HMC658LP2E has a fixed attenuation value of 20 dB.
The HMC658LP2E operates over a frequency range from DC to 25 GHz.
The impedance of the HMC658LP2E is 50 Ohms.
The HMC658LP2E can handle a maximum CW RF input power of +25 dBm.
The HMC658LP2E is supplied in a 6-TDFN Exposed Pad package.
