| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,523 pcs
|
3523 pcs | On Request | 1 | On Request | On Request | 15+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Frequency | |
| Gain | |
| Mounting Type | |
| Noise Figure | |
| RF Type | |
| Supplier Device Package | |
| Voltage |
The HMC604LP3ETR from Analog Devices Inc. is a high-performance RF amplifier integrated circuit designed for general-purpose applications. It operates within a frequency range of 4.8 GHz to 6 GHz, making it suitable for various wireless communication systems, including GPS.
Key electrical characteristics include a typical gain of 15 dB, a noise figure of 1.5 dB, and a P1dB compression point of 14 dBm. The device is powered by a voltage range of 2.7V to 5.5V and consumes a current of 42mA.

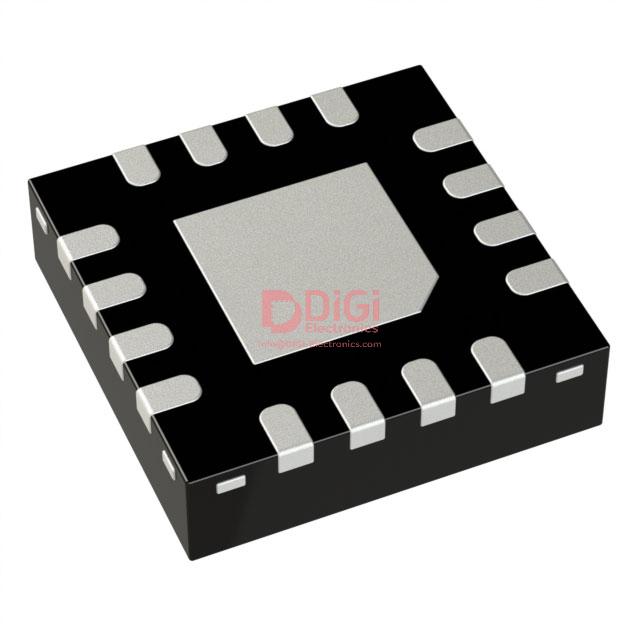

This RF amplifier is designed for surface mounting and comes in a compact 16-VFQFN Exposed Pad package, also referred to as a 16-QFN (3x3) supplier device package. Its obsolete status indicates it may be end-of-life, and users should verify availability and consider alternatives.
This component is suitable for applications requiring robust RF amplification with low noise and a specific frequency band coverage. The surface mount package facilitates integration into compact electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The HMC604LP3ETR operates within a frequency range of 4.8 GHz to 6 GHz.
The HMC604LP3ETR offers a typical gain of 15 dB.
The noise figure for the HMC604LP3ETR is 1.5 dB.
The HMC604LP3ETR operates with a supply voltage ranging from 2.7 V to 5.5 V.
The HMC604LP3ETR is supplied in a 16-VFQFN Exposed Pad package, also known as a 16-QFN (3x3).
The HMC604LP3ETR is designed for surface mounting.
The product status for the HMC604LP3ETR is Obsolete.
