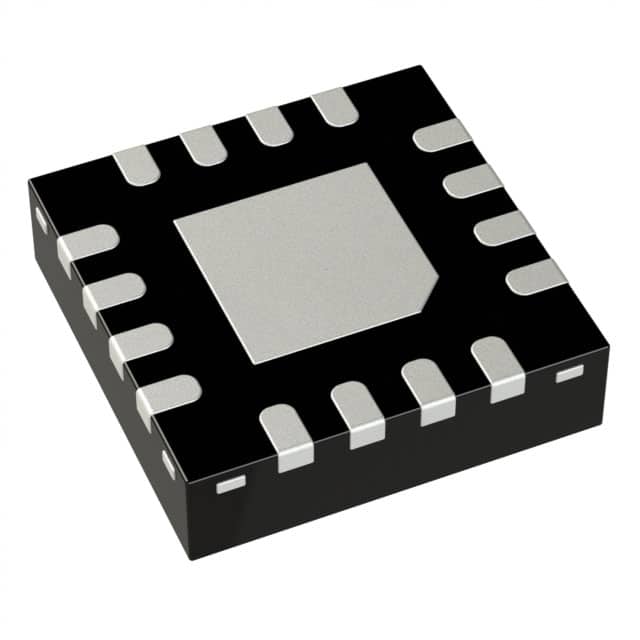

The HMC539LP3ETR is a broadband 5-bit GaAs IC digital attenuator manufactured by Analog Devices. It operates over a frequency range of DC to 4 GHz, making it suitable for a wide variety of RF and IF applications.
This digital attenuator features an attenuation range from 0.25 dB (LSB) up to 7.75 dB, with a typical step error of ±0.05 dB. It boasts low insertion loss, typically 0.7 dB, and a high IP3 of +50 dBm. The device utilizes TTL/CMOS compatible control inputs for each bit and requires a single +5V supply.
The HMC539LP3ETR is housed in a 16-VFQFN exposed pad surface mount package. Its design is ideal for applications such as cellular infrastructure, WLAN, WiMAX, microwave radio, VSAT, and test equipment.
Key electrical specifications include a typical insertion loss of 0.7 dB from DC to 1.5 GHz, a return loss of 25 dB up to 3 GHz, and an input power for 0.1 dB compression of 28 dBm.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The HMC539LP3ETR operates from DC to 4 GHz.
The maximum attenuation value is 7.75 dB.
The typical insertion loss is 0.7 dB from DC to 1.5 GHz.
The input third order intercept point is +50 dBm.
The HMC539LP3ETR is supplied in a 16-VFQFN exposed pad package.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
