| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,100 pcs
|
2100 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request | |
|
1,229 pcs
|
1229 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,030 pcs
|
1030 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Frequency | |
| Gain | |
| Mounting Type | |
| Noise Figure | |
| Operating Voltage | |
| P1dB | |
| RF Type | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Test Frequency |

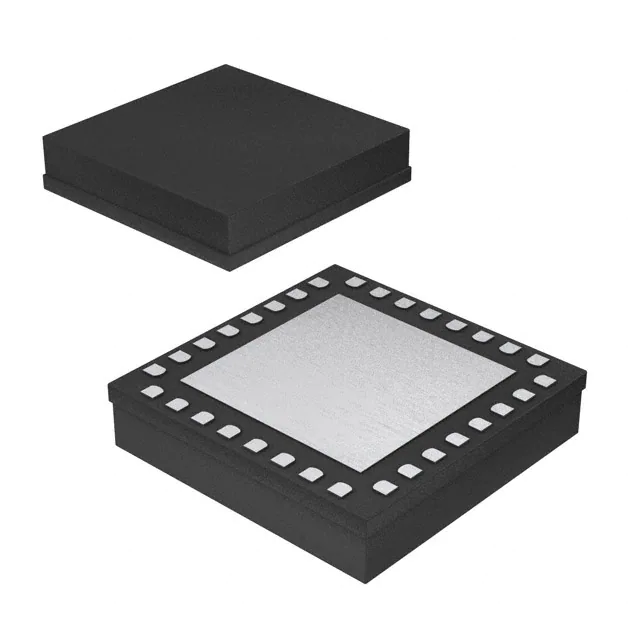

The HMC516LC5TR from Analog Devices Inc. is an RF Amplifier IC designed for applications requiring high-frequency signal amplification. It operates within a frequency range of 9GHz to 18GHz, with a typical test frequency range of 9GHz to 12GHz. This component offers a significant gain of 20.5dB and a low noise figure of 2dB, making it suitable for sensitive RF systems.
The device supports a supply voltage range of 2.5V to 3.5V, consuming a typical current of 65mA to 88mA. It is packaged in a 32-TFQFN Exposed Pad, suitable for surface mounting. The HMC516LC5TR is described as a General Purpose RF Amplifier and is RoHS3 Compliant.
This amplifier is ideal for VSAT applications and other general-purpose RF systems where precise amplification and low noise are critical. Its surface-mount package facilitates integration into compact electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating frequency range is 9GHz to 18GHz.
The typical gain is 20.5dB.
The noise figure is 2dB.
The supply voltage ranges from 2.5V to 3.5V.
The package is a 32-TFQFN Exposed Pad, suitable for surface mounting.
Yes, it is RoHS3 Compliant.
The Moisture Sensitivity Level is 3 (168 Hours).
