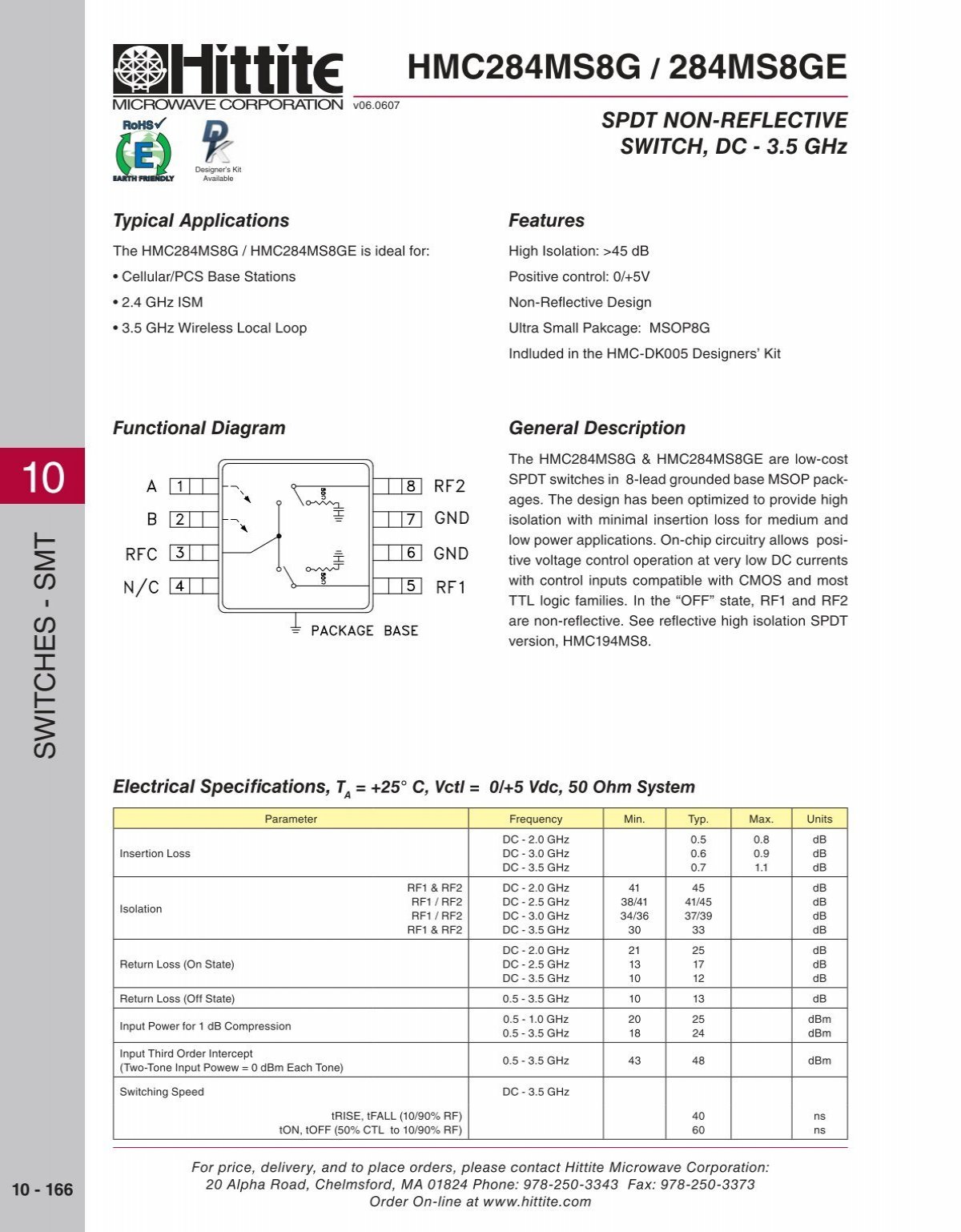

The HMC284MS8G is an SPDT non-reflective switch from Hittite Microwave, operating from DC to 3.5 GHz. It offers high isolation and low insertion loss.

✓ Total Stock: 369 pcs

$ Price Range: $0.75

HMC284MS8G Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Partservice ✓ Non-Authorised Inventory information	309 pcs On Request	309 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Speed Components Ltd ✓ Non-Authorised Inventory information	60 pcs On Request	60 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

HMC284MS8G Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Hittite Microwave
Approval Agency	DC - 3.5 GHz
Frequency Range	DC - 3.5 GHz
Lead Style	Gull Wing
Mounting Type	Surface Mount
Operating Temperature	+25° C
SVHC Present	Not Present

View Similar Products (0)

HMC284MS8G Description

Short technical summary and product information.

The HMC284MS8G is a low-cost SPDT (Single Pole Double Throw) non-reflective switch designed by Hittite Microwave Corporation. It operates across a frequency range from DC to 3.5 GHz, making it suitable for various wireless applications.

Key electrical specifications include insertion loss values as low as 0.8 dB up to 2.0 GHz, and up to 1.1 dB at 3.5 GHz. The switch provides high isolation, with a minimum of 41 dB at DC - 2.0 GHz and 30 dB at DC - 3.5 GHz. Return loss in the on-state is a minimum of 21 dB at DC - 2.0 GHz, and in the off-state, it is a minimum of 10 dB from 0.5 - 3.5 GHz.

This switch features positive voltage control (0/+5V) and is compatible with CMOS and most TTL logic families. It has a fast switching speed, with rise and fall times of 40 ns and on/off times of 60 ns. The HMC284MS8G is housed in an ultra-small MSOP8G package, suitable for surface mount applications.

Typical applications for the HMC284MS8G include Cellular/PCS Base Stations, 2.4 GHz ISM band applications, and 3.5 GHz Wireless Local Loop systems.

HMC284MS8G Quick Information

Product Type: RF Switch

Series: HMC284

Canonical Name: HMC284MS8G SPDT Non-Reflective Switch

Subcategory: RF Switch

HMC284MS8G Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes

HMC284MS8G Estimated Pricing

Qty	Low	High
1+	$0.75	$0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

HMC284MS8G Features

SPDT non-reflective switch design.
Operates from DC to 3.5 GHz.
Provides high isolation performance.
Low insertion loss across frequency.
Ultra small MSOP8G package.

HMC284MS8G Applications

Suitable for cellular base stations.
Used in PCS band applications.
Ideal for 2.4 GHz ISM systems.
Applicable to 3.5 GHz wireless loops.

HMC284MS8G FAQs

7 frequently asked questions generated from this part’s specifications.

What is the operating frequency range of the HMC284MS8G?

The HMC284MS8G operates from DC to 3.5 GHz.

What is the typical insertion loss of the HMC284MS8G at 3.5 GHz?

The typical insertion loss at DC - 3.5 GHz is 0.9 dB, with a maximum of 1.1 dB.

What is the isolation performance of the HMC284MS8G at 2.0 GHz?

The isolation at DC - 2.0 GHz is a minimum of 41 dB.

What is the return loss in the on-state at 3.5 GHz?

The return loss in the on-state at DC - 3.5 GHz is a minimum of 10 dB.

What is the input power for 1 dB compression at 1 GHz?

The input power for 1 dB compression at 0.5 - 1.0 GHz is a minimum of 20 dBm.

What are the switching speeds for the HMC284MS8G?

The switching speed (tRISE, tFALL) is 40 ns, and the on/off times (tON, tOFF) are 60 ns.

What is the package type for the HMC284MS8G?

The HMC284MS8G is supplied in an MSOP8G package.
