| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
72,320 pcs
|
72320 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name |

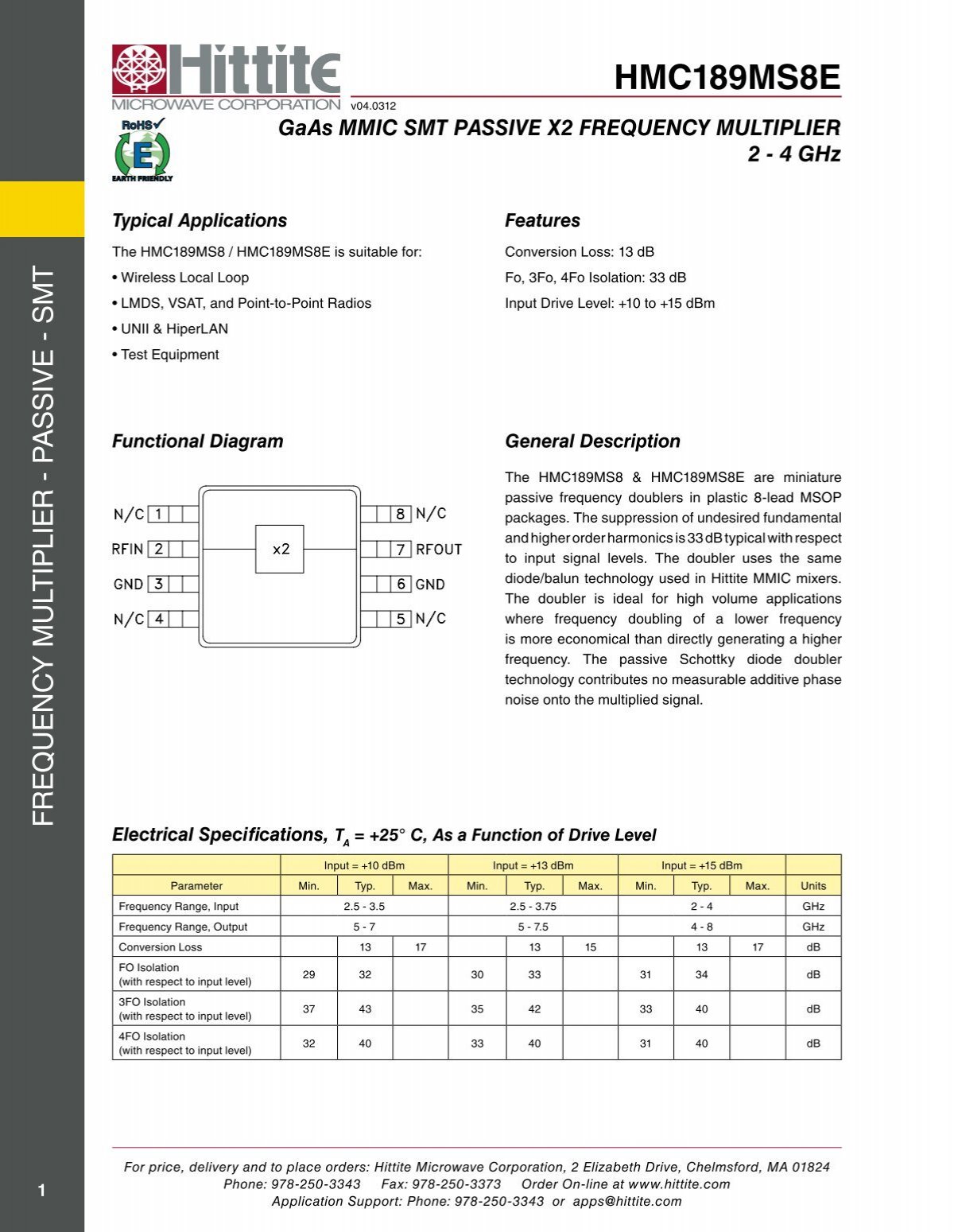

The HMC189MS8 from Hittite Microwave Corporation is a GaAs MMIC SMT passive frequency doubler. It is designed for applications requiring frequency doubling of a lower frequency, offering an economical solution compared to directly generating higher frequencies.
The device features a typical conversion loss of 13 dB and provides isolation for fundamental, 3Fo, and 4Fo harmonics. The input drive level is specified between +10 to +15 dBm. The input frequency range is 2 to 4 GHz, with a corresponding output frequency range of 4 to 8 GHz.
Packaged in an 8-lead MSOP, the HMC189MS8 is suitable for high-volume applications. Its passive Schottky diode doubler technology ensures no measurable additive phase noise is introduced onto the multiplied signal.
Typical applications include Wireless Local Loop, LMDS, VSAT, Point-to-Point Radios, UNII & HiperLAN, and Test Equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input frequency range is 2 to 4 GHz.
The output frequency range is 4 to 8 GHz.
The typical conversion loss is 13 dB.
The input drive level is between +10 to +15 dBm.
The HMC189MS8 is available in an 8-lead MSOP package for SMT applications.
Typical applications include Wireless Local Loop, LMDS, VSAT, Point-to-Point Radios, UNII & HiperLAN, and Test Equipment.
