| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
288 pcs
|
288 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination |

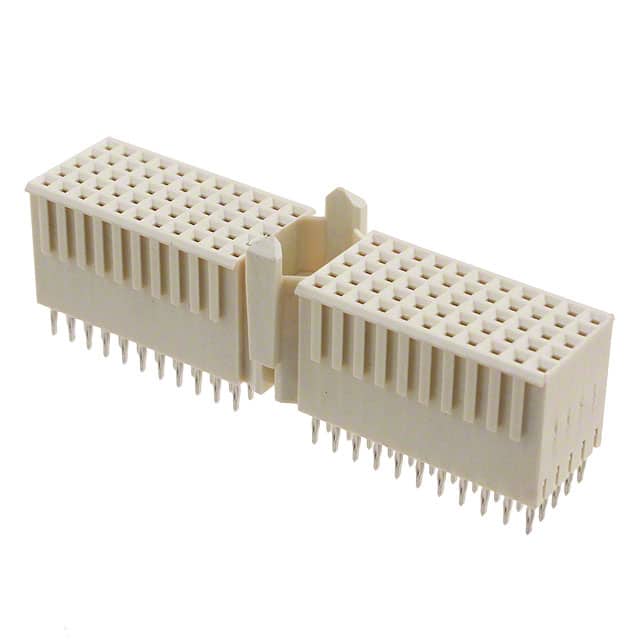

This Amphenol ICC HM2S10PE5100N9LF is a hard metric receptacle connector designed for backplane applications. It features 110 positions arranged in 5 rows with a 2.00mm pitch, providing high-density interconnections. The connector uses a press-fit termination for through-hole mounting, ensuring reliable solderless connections.
The connector style is A 22, and all positions are loaded. Contacts are gold-plated with a thickness of 0.76µm, offering excellent conductivity and corrosion resistance. The press-fit design allows for efficient assembly without soldering, reducing manufacturing time and improving reliability.
This connector is suitable for use in telecommunications, data networking, and industrial equipment where high-density connections are required. The hard metric form factor ensures compatibility with standard backplane systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $13.23 | $13.23 |
| 10+ | $11.90 | $11.90 |
| 25+ | $11.15 | $11.15 |
| 50+ | $10.67 | $10.67 |
| 100+ | $10.22 | $10.22 |
| 288+ | $9.71 | $9.71 |
| 576+ | $9.25 | $9.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
110 positions.
2.00mm (0.079 inches).
Through hole with press-fit termination.
5 rows.
Gold with 0.76µm thickness.
Press-fit.
Yes, all 110 positions are loaded.
