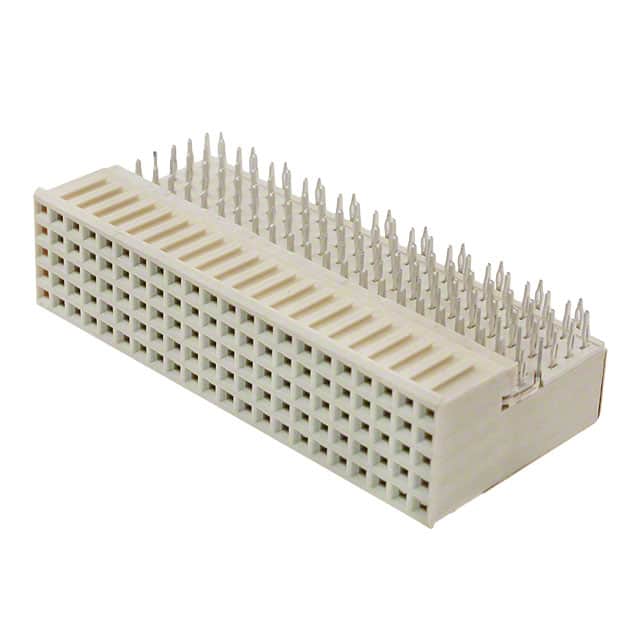

HM2R70PA5108E9 Hard metric receptacle, female sockets, 132 positions, 2.00mm pitch, press-fit, right angle.
Mfr Part #:

HM2R70PA5108E9

Available from 1 distributors
Mfr Name: Amphenol ICC
Amphenol ICC
Hard metric receptacle, female sockets, 132 positions, 2.00mm pitch, press-fit, right angle.
✓ Total Stock: 2 pcs

HM2R70PA5108E9 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
OTL Components ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HM2R70PA5108E9 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Style
Connector Type
Contact Finish
Contact Finish Thickness
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
Tape & Reel
Termination
View Similar Products (0)

HM2R70PA5108E9 Description

Short technical summary and product information.

The HM2R70PA5108E9 from Amphenol ICC is a hard metric receptacle connector designed for backplane applications. It features 132 positions (110 signal plus 22 ground) arranged in 5+1 rows with a 2.00mm pitch. The connector uses a B 22 style and is mounted via board edge, through hole, right angle configuration. Termination is press-fit, ensuring reliable mechanical and electrical connection. Contacts are gold plated with a thickness of 39.4 microinches. The connector is rated for all positions loaded, supporting dense signal routing in high-speed digital systems.

HM2R70PA5108E9 Quick Information

Product Type: Hard Metric Connector
Series: MPACS 5R
Canonical Name: Receptacle, Female Sockets, 132 Position (110 + 22 Ground), B 22 Style, 2.00mm Pitch, Press-Fit, Right Angle
Subcategory: Hard Metric

HM2R70PA5108E9 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

HM2R70PA5108E9 Features

  • 132 positions with 110 signal and 22 ground.
  • 2.00mm pitch for high-density routing.
  • Press-fit termination for reliable connection.
  • Gold plated contacts for corrosion resistance.
  • Right angle board edge mounting design.

HM2R70PA5108E9 Applications

  • Backplane interconnect for telecom systems.
  • High-speed data transmission in servers.
  • Dense signal routing in industrial electronics.
  • Reliable connections in harsh environments.

HM2R70PA5108E9 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the HM2R70PA5108E9 have?

132 positions total: 110 signal and 22 ground.

What is the pitch of this connector?

2.00mm.

What mounting type does this connector use?

Board edge, through hole, right angle.

What is the termination method?

Press-fit.

What is the contact finish?

Gold with a thickness of 39.4 microinches.
