| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
720 pcs
|
720 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination |

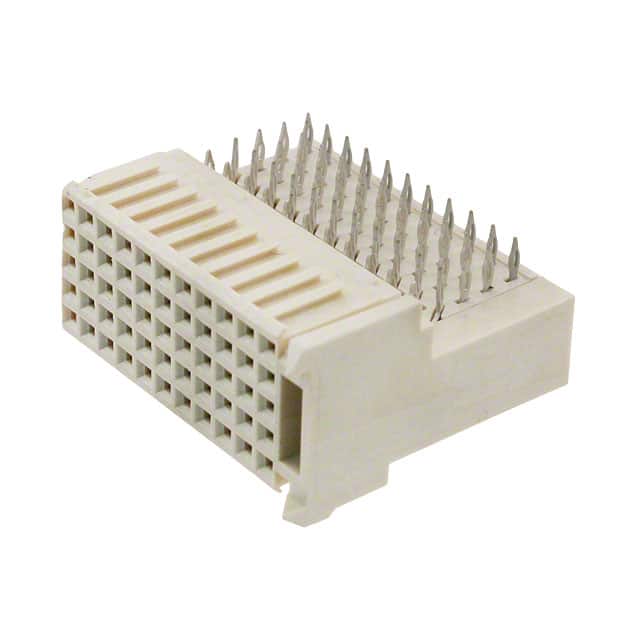

The Amphenol ICC HM2R30PA5100N9LF is a hard metric receptacle connector designed for backplane applications. It features 55 positions arranged in 5 rows with a 2.00mm pitch, providing a compact and reliable interconnection solution.
The connector uses a press-fit termination method for solderless board attachment, and the contacts are finished with 30.0µin (0.76µm) of gold for reliable signal integrity. The mounting type is board edge, through hole, right angle, making it suitable for mezzanine or daughtercard connections.
This connector is part of the C 11 connector style family and is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). It is intended for use in high-density backplane systems where space and signal performance are critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.60 | $3.60 |
| 10+ | $2.63 | $2.63 |
| 25+ | $2.25 | $2.25 |
| 100+ | $2.16 | $2.16 |
| 250+ | $2.07 | $2.07 |
| 576+ | $1.97 | $1.97 |
| 1,152+ | $1.94 | $1.94 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
55 positions, all loaded.
2.00mm.
Board edge, through hole, right angle.
Press-fit.
Gold, 30.0µin (0.76µm).
