HM2R10PA5100N9
Amphenol ICC

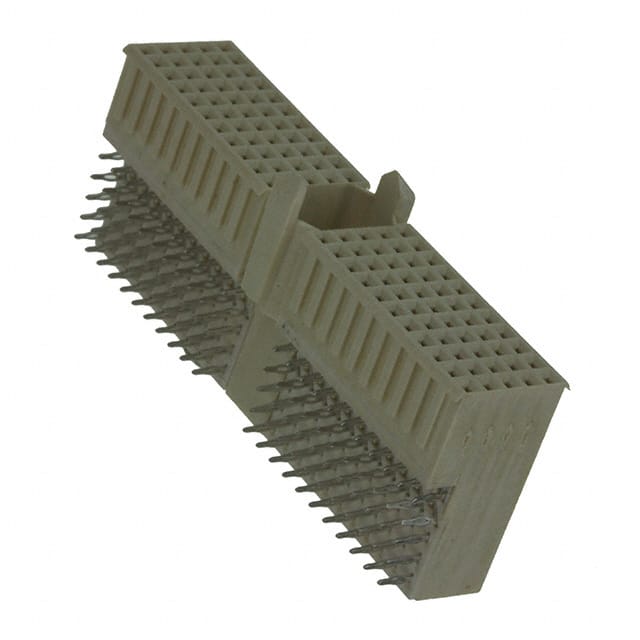

110-position, 2.00mm pitch, press-fit receptacle with gold contacts, right angle mounting.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination |
The Amphenol ICC HM2R10PA5100N9LF is a hard metric backplane connector designed for high-density board-to-board interconnects. This receptacle connector type A 22 features 110 female socket positions fully loaded across 5 rows with a 2.00mm pitch. The connector uses press-fit termination for reliable solderless installation and is configured for board edge, through hole, right angle mounting. Gold contact finish with 30.0µin (0.76µm) thickness ensures low contact resistance and excellent durability over repeated mating cycles. This connector is suitable for use in backplane and midplane applications within telecommunications, data communications, and industrial electronic systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.26 | $5.26 |
| 10+ | $4.47 | $4.47 |
| 25+ | $4.19 | $4.19 |
| 50+ | $3.99 | $3.99 |
| 100+ | $3.80 | $3.80 |
| 288+ | $3.52 | $3.52 |
| 576+ | $3.35 | $3.35 |
| 1,152+ | $3.19 | $3.19 |
| 2,592+ | $3.01 | $3.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 110 positions, fully loaded with contacts.
The pitch is 2.00mm (0.079 inches).
The connector uses press-fit termination.
The connector has 5 rows of contacts.
It supports board edge, through hole, right angle mounting.
The contact finish is gold with a thickness of 30.0µin (0.76µm).
It is listed as RoHS3 Compliant and REACH Unaffected, with MSL Level 1 (Unlimited). Compliance data is unverified and should be confirmed with the manufacturer.
