| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
220 pcs
|
220 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination |

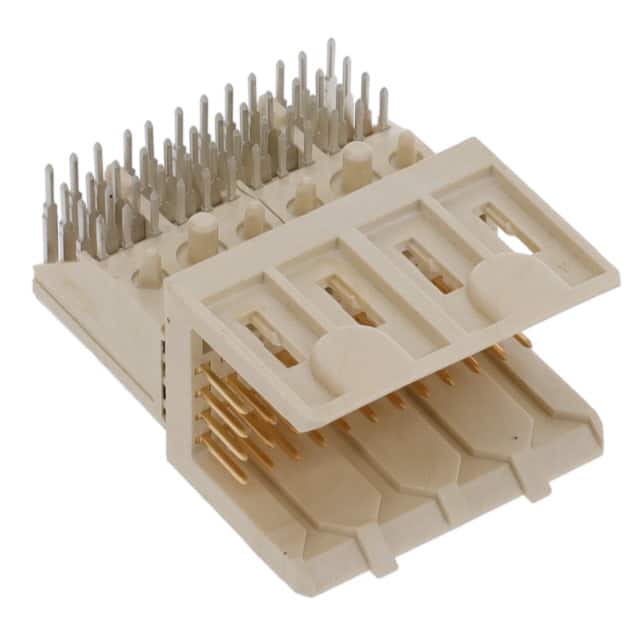

This Amphenol ICC HM1L42AAP000H6PLF is a specialized backplane connector header featuring 48 positions arranged in 4 rows with a 2.00mm pitch. The connector uses male pins and is designed for board edge, through hole, and right angle mounting, terminated via press-fit technology for reliable solderless connections.
Contact surfaces are finished with 30.0µin (0.76µm) of gold, ensuring excellent conductivity and corrosion resistance. The housing is natural/white in color and includes a board guide feature to aid in alignment during assembly. All positions are loaded, providing full connectivity.
This connector is suitable for backplane applications where high-density, high-reliability interconnects are required. The press-fit termination eliminates the need for soldering, reducing assembly time and potential thermal stress.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.09 | $5.09 |
| 10+ | $4.32 | $4.32 |
| 25+ | $4.05 | $4.05 |
| 50+ | $3.86 | $3.86 |
| 100+ | $3.67 | $3.67 |
| 250+ | $3.36 | $3.36 |
| 360+ | $3.00 | $3.00 |
| 2,520+ | $2.92 | $2.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
48 positions.
2.00mm (0.079").
Board edge, through hole, right angle.
Press-fit.
Gold, 30.0µin (0.76µm).
4 rows.
Board guide.
