| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,440 pcs
|
1440 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Termination |

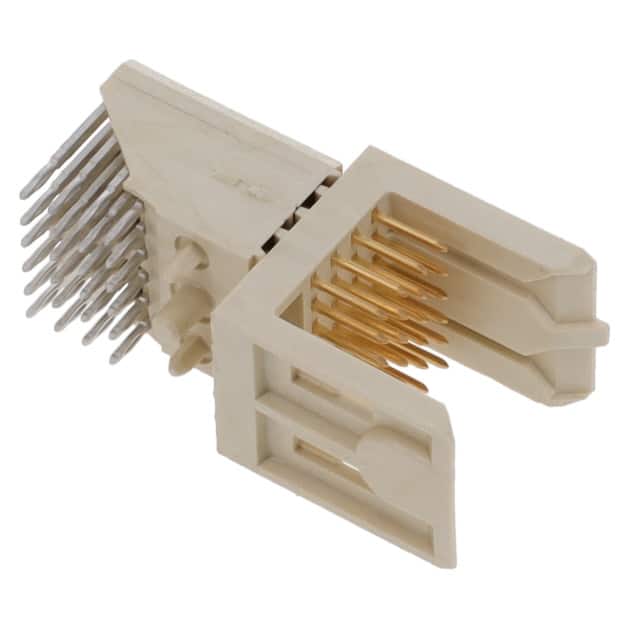

The HM1L41ADP000H6PLF is a 24 position header connector from Amphenol ICC. It features 4 rows with all positions loaded and a 2.00mm pitch between contacts. The connector is designed for board edge mounting with a right angle, through hole orientation and uses press-fit termination for reliable solderless connections.
The contacts are finished with 30.0µin gold plating for excellent conductivity and corrosion resistance. A built-in board guide aids in alignment during assembly. The housing is natural/white in color.
This connector is suitable for use in backplane and specialized interconnection systems where a high-density, press-fit interface is required. The right angle orientation makes it ideal for mezzanine or edge card applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.48 | $5.48 |
| 10+ | $4.65 | $4.65 |
| 25+ | $4.36 | $4.36 |
| 50+ | $4.15 | $4.15 |
| 100+ | $3.95 | $3.95 |
| 250+ | $3.71 | $3.71 |
| 720+ | $3.44 | $3.44 |
| 1,440+ | $3.28 | $3.28 |
| 2,880+ | $3.12 | $3.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
24 positions, all loaded, in 4 rows.
2.00mm (0.079 inches).
Board edge, through hole, right angle mounting.
