| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
72 pcs
|
72 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination |

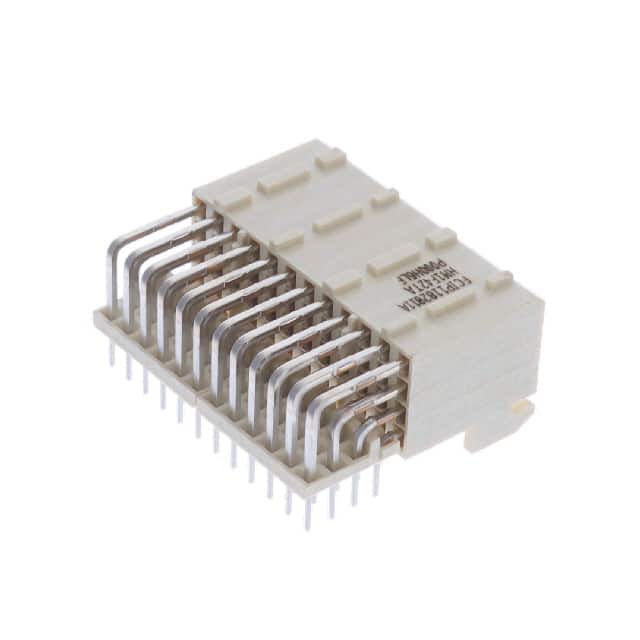

The HM1F42TAP000H6LF is a high speed receptacle connector from Amphenol ICC, designed for backplane interconnect applications. It features 48 positions arranged in 4 rows with a 2.00mm pitch, providing a compact yet high-density connection solution. All positions are loaded with gold-plated contacts featuring a 29.5µin (0.75µm) finish for reliable signal integrity.
This connector supports board edge, through hole, and right angle mounting styles, with solder termination for secure attachment to the PCB. It includes a board guide and spacer to facilitate proper alignment and mechanical stability during assembly. The housing is natural in color.
Designed for high speed differential signaling, this receptacle is suitable for use in data communication, telecom, and networking equipment where reliable high-speed connections are critical. The 4-row layout allows for efficient routing of multiple signals in a compact footprint.
Please note that electrical specifications such as current and voltage ratings are not provided in the available data, and compliance with RoHS/REACH and MSL level 1 is unverified. A datasheet is not currently linked, so verification of detailed performance parameters is recommended.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.05 | $10.05 |
| 10+ | $8.54 | $8.54 |
| 25+ | $8.01 | $8.01 |
| 50+ | $7.28 | $7.28 |
| 100+ | $6.93 | $6.93 |
| 250+ | $6.74 | $6.74 |
| 500+ | $6.53 | $6.53 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
48 positions.
2.00mm (0.079").
Board edge, through hole, right angle.
Gold with 29.5µin (0.75µm) thickness.
4 rows.
Board guide and spacer.
Solder.
