| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,213 pcs
|
1213 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Transformer Type | |
| Turns Ratio | |
| Width |

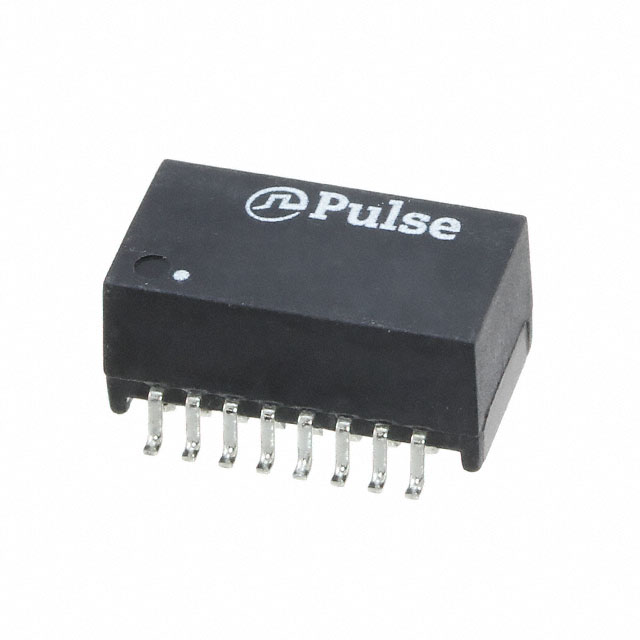

The Pulse Electronics HM1225NLT is a pulse transformer specifically designed for LAN 10/100 Base-T applications. This component features a 1CT:1CT turns ratio for both transmitter and receiver functions, with an inductance rating of 200µH.
Engineered for reliability, the HM1225NLT operates across a wide temperature range of -40°C to 95°C. Its surface mountable design facilitates integration into compact electronic assemblies. The transformer type is clearly identified as suitable for LAN 10/100 Base-T networks.
This pulse transformer is suitable for various networking and data communication applications where signal integrity and reliable data transmission are critical. Its specifications make it a robust choice for designs requiring stable performance under diverse environmental conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.00 | $3.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 95°C.
The inductance is 200µH.
The HM1225NLT transformer is designed for surface mounting.
The turns ratio is 1CT:1CT for the transmitter and 1CT:1CT for the receiver.
The HM1225NLT is a LAN 10/100 Base-T transformer.
