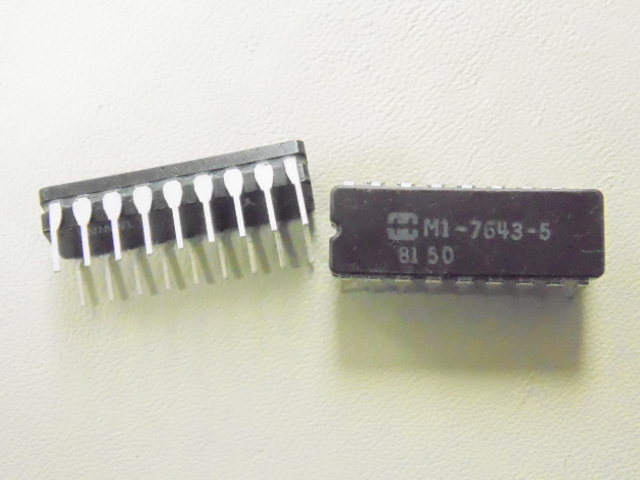

The HM1-7643-5 is a special purpose transistor manufactured by American Microsemiconductor. It utilizes TTL technology and operates with 4 bits per word, featuring a maximum access time of 60ns. This component is designed for through-hole mounting in a DIP package and requires a nominal supply voltage of 5.0V. The maximum operating temperature is 70°C. It has 18 pins and supports 2 chip selects. The program voltage is 14V, and the output configuration is 3-State. This transistor is suitable for various electronic applications requiring specific logic and timing characteristics.
Key electrical specifications include its TTL technology, 1k word count, and 4 bits per word. The maximum access time is rated at 60ns, with a 3-state output configuration. It supports 2 chip selects and requires a program voltage of 14V. The nominal supply voltage is 5.0V, and it can operate up to a maximum temperature of 70°C. The component is housed in a DIP package for through-hole mounting and has 18 pins.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.87 | $1.87 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The HM1-7643-5 transistor uses TTL technology.
The maximum access time for the HM1-7643-5 is 60ns.
The nominal supply voltage for the HM1-7643-5 is 5.0V.
The maximum operating temperature for the HM1-7643-5 is 70°C.
The HM1-7643-5 is in a DIP package.
The HM1-7643-5 has 18 pins.
