| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12,710 pcs
|
12710 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

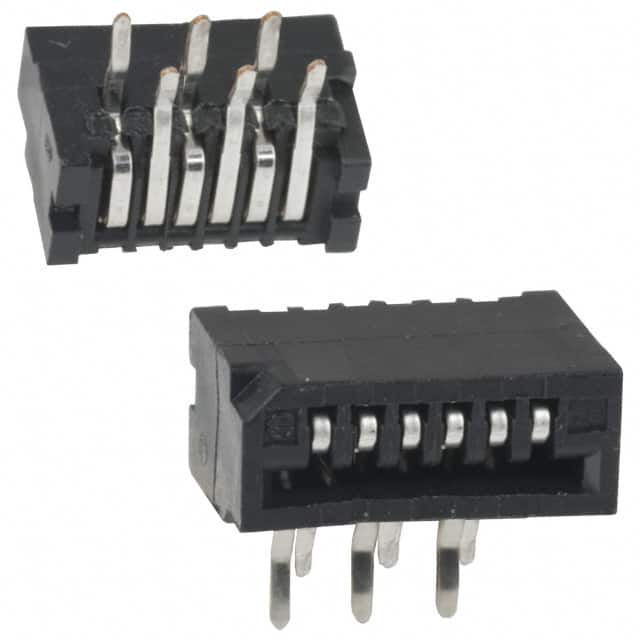

The HLW6R-2C7LF is a 6-position FFC/FPC connector from Amphenol ICC featuring a 1.00mm pitch. It is designed for top contact termination and is mounted using through hole right angle configuration with kinked pin terminations.
The connector accepts FFC and FPC cables with a thickness of 0.30mm or 0.33mm and supports both straight and tapered cable end types. The housing is made of glass-filled Polybutylene Terephthalate (PBT) with a UL94 V-0 flammability rating, and the contacts are tin-plated phosphor bronze.
This connector is rated for 100V and has an operating temperature range of -55°C to 85°C. The height above board is 3.90mm. It is suitable for applications requiring a compact, reliable interconnection for flat flexible cables.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.16 | $0.16 |
| 10+ | $0.13 | $0.13 |
| 25+ | $0.12 | $0.12 |
| 100+ | $0.11 | $0.11 |
| 250+ | $0.10 | $0.10 |
| 1,000+ | $0.09 | $0.09 |
| 2,500+ | $0.08 | $0.08 |
| 4,650+ | $0.08 | $0.08 |
| 9,300+ | $0.07 | $0.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The HLW6R-2C7LF has 6 positions.
The pitch is 1.00mm.
The voltage rating is 100V.
The mounting type is through hole, right angle.
The operating temperature range is -55°C to 85°C.
The contact finish is tin.
The housing material is glass-filled Polybutylene Terephthalate (PBT) with a UL94 V-0 flammability rating.
