| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,600 pcs
|
9600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

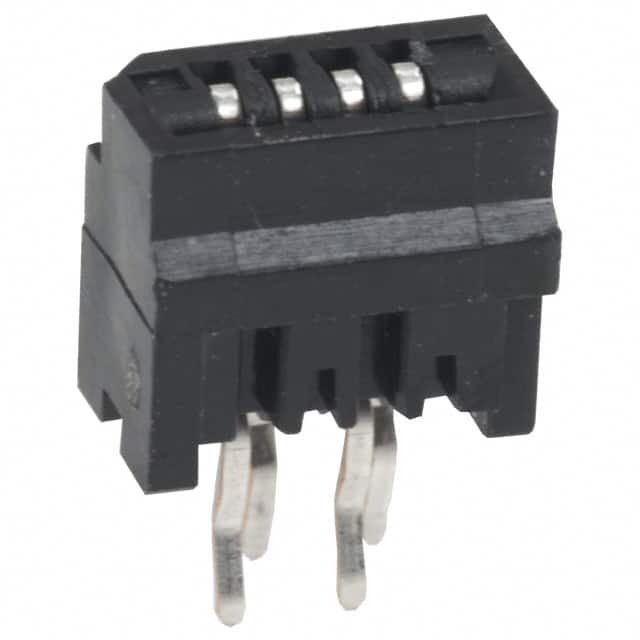

The HLW4S-2C7LF is a 4-position FFC/FPC connector manufactured by Amphenol ICC. It features a 1.00mm pitch and is designed for vertical through-hole mounting, making it suitable for board-to-flex interconnections in compact electronic assemblies. The connector accepts 0.33mm thick FFC/FPC cables and uses a kinked pin termination style for reliable mechanical retention. The contacts are made of phosphor bronze with a tin finish, ensuring good conductivity and solderability. The housing is constructed from glass-filled polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating, providing durability and fire resistance. The connector is rated for a maximum voltage of 100V and operates over a temperature range of -55°C to 85°C. Its low profile of 5.90mm above the board enables space-saving designs. Typical applications include consumer electronics, industrial controls, and automotive systems where reliable flexible circuit connections are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.12 | $0.12 |
| 10+ | $0.11 | $0.11 |
| 25+ | $0.09 | $0.09 |
| 100+ | $0.09 | $0.09 |
| 250+ | $0.08 | $0.08 |
| 1,000+ | $0.07 | $0.07 |
| 2,500+ | $0.07 | $0.07 |
| 5,000+ | $0.06 | $0.06 |
| 8,400+ | $0.06 | $0.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 4 positions.
The pitch is 1.00mm.
The maximum voltage rating is 100V.
The connector is through-hole mounted vertically.
The operating temperature range is -55°C to 85°C.
The contact finish is tin.
The housing is glass-filled polybutylene terephthalate (PBT) with UL94 V-0 rating.
