| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
304 pcs
|
304 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

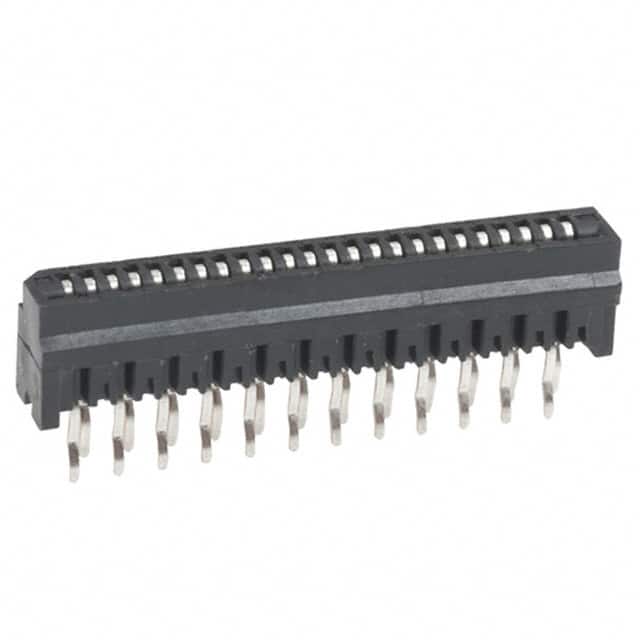

The HLW24S-2C7LF is a 24-position FFC/FPC connector from Amphenol ICC, designed for through-hole mounting with a vertical orientation. It features a 1.00mm pitch and accepts FFC/FPC cables with a thickness of 0.33mm. The connector uses kinked pin termination and phosphor bronze contacts with a tin finish for reliable electrical connections. The housing is made of glass-filled PBT with a UL94 V-0 flammability rating, ensuring durability and safety. Rated for 100V and an operating temperature range of -55°C to 85°C, this connector is suitable for a variety of applications requiring flat flexible cable interconnects. The vertical, 1-sided contact design simplifies PCB layout and assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.25 | $0.25 |
| 10+ | $0.22 | $0.22 |
| 25+ | $0.20 | $0.20 |
| 100+ | $0.18 | $0.18 |
| 250+ | $0.17 | $0.17 |
| 1,000+ | $0.15 | $0.15 |
| 2,100+ | $0.14 | $0.14 |
| 10,500+ | $0.13 | $0.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
24 positions.
1.00mm.
100V.
Through hole.
-55°C to 85°C.
PBT glass-filled, UL94 V-0.
Tin.
