| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,990 pcs
|
3990 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

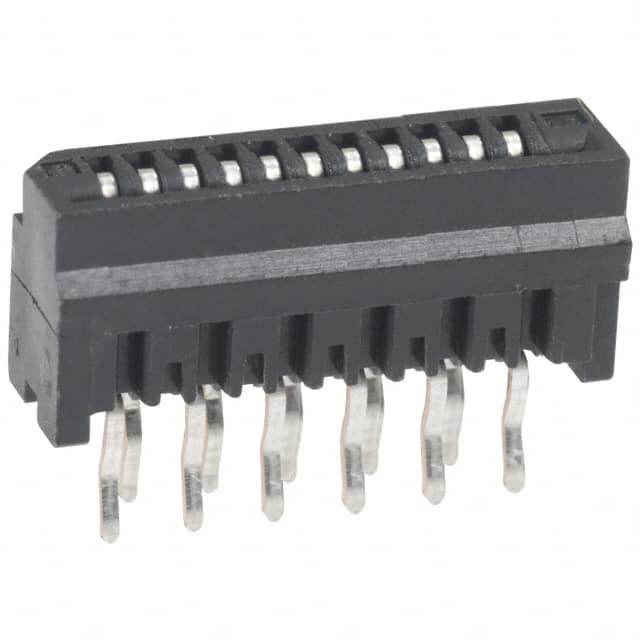

The HLW11S-2C7LF is a through-hole FFC/FPC connector manufactured by Amphenol ICC. It accommodates 11 positions with a 1.00mm pitch, making it suitable for flexible circuit interconnection in space-constrained designs. The connector features a vertical orientation with 1-sided contacts, allowing direct board-to-cable connections.
Rated at 100V and operating from -55°C to 85°C, the connector uses phosphor bronze contacts with tin finish and a glass-filled PBT housing rated UL94 V-0. The kinked pin termination ensures secure mechanical retention during soldering. This connector supports FFC and FPC cables up to 0.33mm thickness.
Typical applications include consumer electronics, industrial controls, and automotive subsystems where reliable low-profile cable-to-board interconnection is required. The through-hole mounting provides robust mechanical attachment suitable for moderate vibration environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.18 | $0.18 |
| 10+ | $0.15 | $0.15 |
| 25+ | $0.14 | $0.14 |
| 100+ | $0.13 | $0.13 |
| 250+ | $0.12 | $0.12 |
| 1,000+ | $0.11 | $0.11 |
| 2,500+ | $0.10 | $0.10 |
| 3,990+ | $0.10 | $0.10 |
| 11,970+ | $0.09 | $0.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
11 positions.
1.00mm (0.039 inches).
Through hole mounting.
100V.
-55°C to 85°C.
Tin finish on phosphor bronze contacts.
UL94 V-0.
