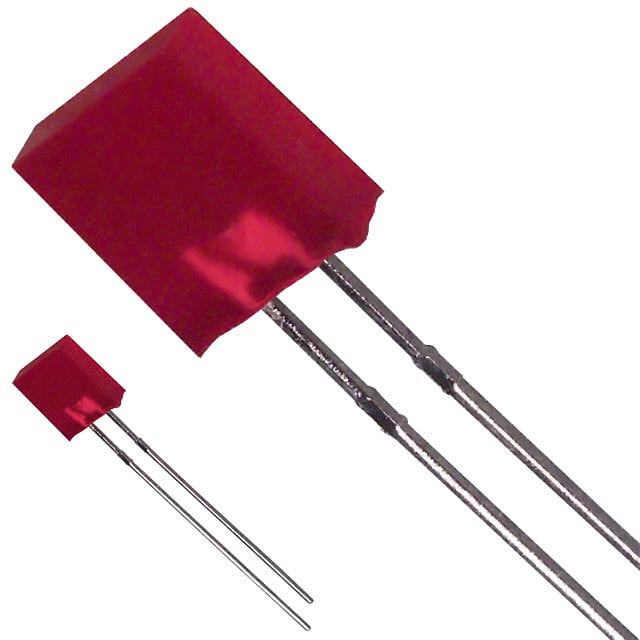

The ON Semiconductor HLMP0301 is a red LED designed for discrete indication applications. It features a diffused rectangular lens and a through-hole mounting type, making it suitable for various panel and board-level indicator needs.
This LED operates with a typical forward voltage of 2.1V at 20mA test current, producing a luminous intensity of 5mcd. The peak wavelength is 635nm, and it offers a broad 100° viewing angle. The component has a maximum power dissipation of 135mW and can operate within a temperature range of -55°C to +100°C.
The HLMP0301 is housed in a radial package with a maximum height of 8.00mm. Its lens is red and diffused, providing a clear visual indication. The component is rated for MSL 1 and is RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage for the HLMP0301 LED is 2.1V when tested at 20mA.
The typical luminous intensity of the HLMP0301 LED is 5mcd at a forward current of 20mA.
The peak wavelength for the HLMP0301 LED is 635nm.
The HLMP0301 LED has a viewing angle of 100 degrees.
The operating temperature range for the HLMP0301 LED is -55°C to +100°C.
The HLMP0301 LED is supplied in a radial package and is designed for through-hole mounting.
