| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,511 pcs
|
1511 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| DC and Peak Forward Current | |
| Lead Style | |
| Lens Size | |
| Lens Style | |
| Lens Type | |
| Millicandela Rating | |
| Mounting Type | |
| Viewing Angle | |
| Voltage Rating | |
| Wavelength | |
| power_dissipation (Maximum @ Green) | |
| power_dissipation (Maximum @ Red) | |
| power_dissipation (Maximum @ Yellow) |

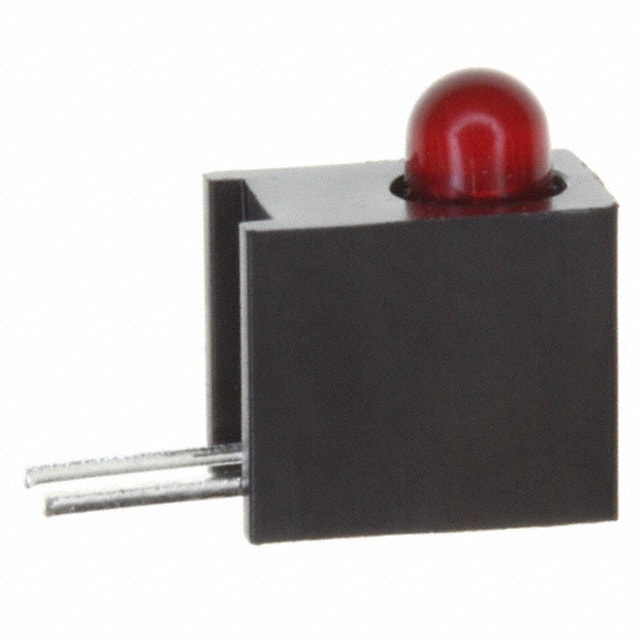

This Broadcom HLMP-1700-B00A2 is a red, diffused, tinted LED lamp designed for low DC current applications. It operates with a typical forward voltage of 1.7V and a forward current of 2mA, providing a luminous intensity of 2.1 mcd. The LED features a T-1 (3mm) package size with a round, domed top lens and a wide viewing angle of 50 degrees.
Optimized for low power consumption, this LED is suitable for TTL output current levels. Its right-angle, through-hole mounting type makes it ideal for direct insertion into printed circuit boards. The AlInGaP LED technology ensures high efficiency and consistent brightness.
Applications include low power DC circuits, telecommunications indicators, portable equipment, and keyboard indicators. The diffused and tinted lens provides a soft, wide light distribution.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical luminous intensity is 2.1 mcd when operated at a forward current of 2 mA.
The typical forward voltage is 1.7 V.
The LED is supplied in a T-1 (3mm) package.
This LED features a right-angle, through-hole mounting type.
The LED is red.
