| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12,000 pcs
|
12000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,365 pcs
|
2365 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,365 pcs
|
2365 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Height | |
| Height (Max) | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Supplier Device Package | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

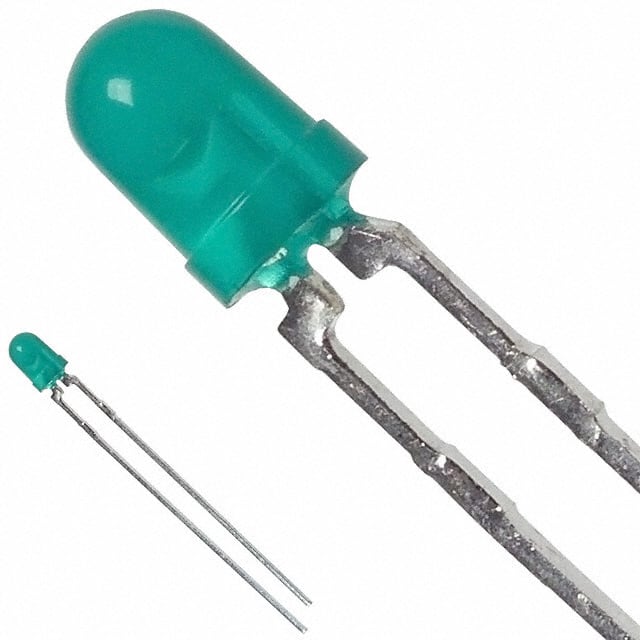

The Broadcom Limited HLMP-1503 is a T-1 (3mm) diffused LED lamp with a green color and lens.
This discrete LED features a round, domed top lens style and is designed for through-hole mounting. It has a typical forward voltage of 2.1V and a current rating of 10mA, producing a luminous intensity of 1mcd at this current. The viewing angle is 60 degrees.
The LED has a wavelength of 565nm and a diffused green lens. Its maximum height is 6.35mm. The package type is radial.
This component is suitable for various indication applications where a green light source is required. Its through-hole mounting makes it easy to integrate into breadboards or traditional PCB designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage for the HLMP-1503 LED is 2.1V.
The current rating for the HLMP-1503 LED is 10mA.
The luminous intensity of the HLMP-1503 LED is 1mcd.
The viewing angle of the HLMP-1503 LED is 60 degrees.
The HLMP-1503 LED is designed for through-hole mounting.
The HLMP-1503 LED comes in a radial package.
The HLMP-1503 LED is RoHS3 compliant.
