| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
32 pcs
|
32 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Lead Style | |
| Length | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| SVHC Present | |
| Tape & Reel | |
| Termination Style | |
| Topology | |
| Type | |
| Voltage | |
| Width |

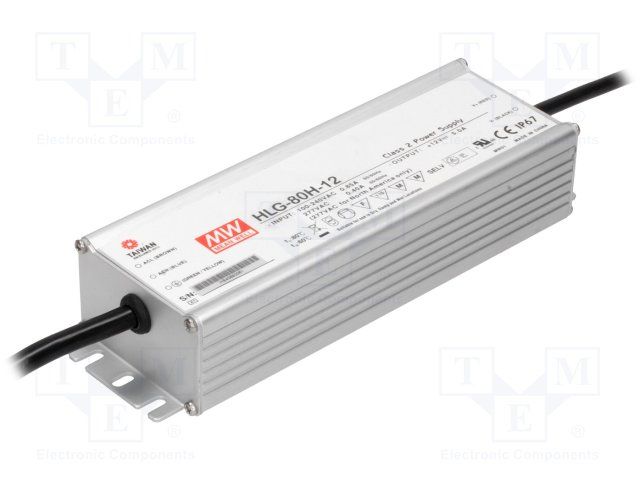

The Mean Well HLG-80H-12 is a 60W AC-DC LED driver designed for constant current and constant voltage operation. It delivers a 5A output current with a voltage range of 7.2 to 12V, making it suitable for a variety of LED lighting applications. The driver achieves 88% efficiency and includes protection features such as overcurrent (OCP), overtemperature (OTP), overvoltage (OVP), and short-circuit (SCP) protection.
The driver operates from a 90VAC input and has a wide operating temperature range of -40°C to 80°C. It carries an IP67 rating, indicating protection against dust and water immersion, and is suitable for outdoor or harsh environments. The unit features wire leads for termination and measures 171.8mm x 61.5mm x 38.8mm. The HLG-80H-12 is approved by multiple agencies including CB, CCC, CE, cULus, cURus, PSE, RCM, TUV, and UL, ensuring compliance with international standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $43.10 | $43.10 |
| 5+ | $41.10 | $41.10 |
| 10+ | $39.30 | $39.30 |
| 16+ | $38.10 | $38.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
90VAC.
Wire leads with dimensions 171.8mm x 61.5mm x 38.8mm.
-40°C to 80°C.
It is indicated as RoHS3 compliant, but this status is unverified. Verify with manufacturer.
88%.
OCP, OTP, OVP, SCP.
CB, CCC, CE, cULus, cURus, PSE, RCM, TUV, UL.
