| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24 pcs
|
24 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Lead Style | |
| Length | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| SVHC Present | |
| Termination Style | |
| Topology | |
| Type | |
| Voltage | |
| Width |

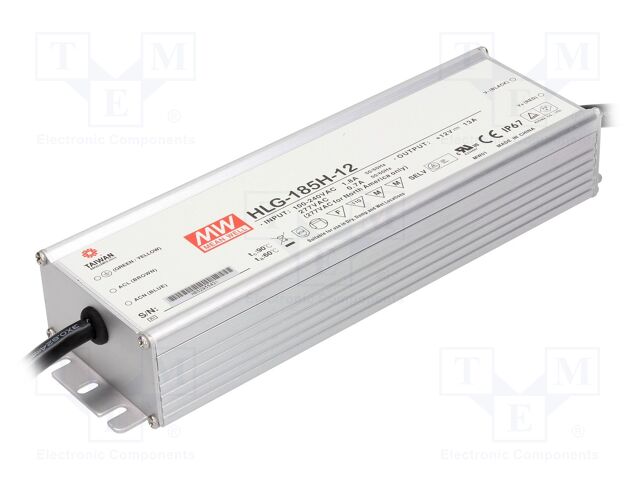

The Mean Well HLG-185H-12 is an AC-DC LED driver designed to provide both constant current and constant voltage output. It delivers a rated power of 156 watts with an output current of 13A and a voltage range of 6-12V. The driver achieves an efficiency of 91.5%, reducing thermal losses in demanding lighting applications.
This enclosed driver features an IP67 rating for protection against dust and water ingress, making it suitable for outdoor or harsh environment installations. It includes comprehensive protection features including overcurrent (OCP), overtemperature (OTP), overvoltage (OVP), and short-circuit (SCP) protection. The operating temperature range spans from -40°C to 90°C, accommodating extreme climates.
The HLG-185H-12 is certified by multiple agencies including CB, CCC, CE, cURus, PSE, RCM, and TUV, supporting global deployment. Termination is via wire leads for straightforward field wiring.
| Qty | Low | High |
|---|---|---|
| 1+ | $59.10 | $59.10 |
| 5+ | $56.30 | $56.30 |
| 12+ | $53.80 | $53.80 |
| 24+ | $52.20 | $52.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage range is 6-12V.
The operating temperature range is -40°C to 90°C.
It includes overcurrent (OCP), overtemperature (OTP), overvoltage (OVP), and short-circuit (SCP) protection.
Yes, it has an IP67 rating, indicating protection against dust and water immersion.
The efficiency is 91.5%.
It has a single output.
The dimensions are 204.0mm x 68.0mm x 38.8mm (8.03" x 2.68" x 1.53").
