| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
66 pcs
|
66 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Ratings | |
| Tape & Reel | |
| Termination Style | |
| Topology | |
| Type | |
| Voltage | |
| Width |

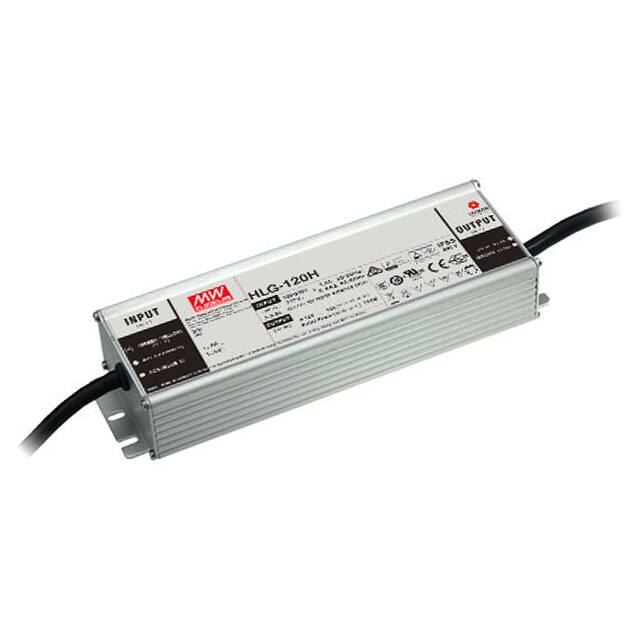

The Mean Well HLG-120H-24A is a high-efficiency AC-DC LED driver designed for constant current and constant voltage operation. It delivers an output voltage range of 22 to 27V DC at a rated current of 5A, providing up to 120W of power. With a typical efficiency of 93%, this driver minimizes energy loss and heat generation.
The driver operates from a nominal 90V AC input. It features comprehensive protection including overcurrent (OCP), overtemperature (OTP), overvoltage (OVP), and short-circuit protection (SCP). The unit is rated for operation in ambient temperatures from -40°C to 80°C and carries an IP65 ingress protection rating, making it suitable for outdoor or damp environments.
The HLG-120H-24A has a compact metal enclosure measuring 196.0mm x 68.0mm x 38.8mm (7.72" x 2.68" x 1.53") and terminates with wire leads for easy installation. It is approved by multiple agencies including CB, CCC, CE, cURus, ENEC, PSE, RCM, and TUV. The driver is compliant with RoHS3 and REACH.
This driver is ideal for LED lighting applications requiring a regulated voltage and current source, such as street lighting, architectural lighting, and industrial lighting. Its constant current and constant voltage output provides flexibility for driving various LED configurations.
| Qty | Low | High |
|---|---|---|
| 1+ | $54.70 | $54.70 |
| 5+ | $52.10 | $52.10 |
| 12+ | $49.80 | $49.80 |
| 24+ | $48.40 | $48.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal input voltage is 90VAC.
The output voltage range is 22V to 27V DC with a constant current of 5A, providing up to 120W.
The efficiency is 93%.
It includes overcurrent, overtemperature, overvoltage, and short-circuit protection.
The operating temperature range is -40°C to 80°C.
The IP rating is IP65.
It is approved by CB, CCC, CE, cURus, ENEC, PSE, RCM, and TUV.
