| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,500 pcs
|
5500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
96 pcs
|
96 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
96 pcs
|
96 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact System | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Package Quantity | |
| Packaging Type | |
| Pitch | |
| Row Spacing | |
| Special Features | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

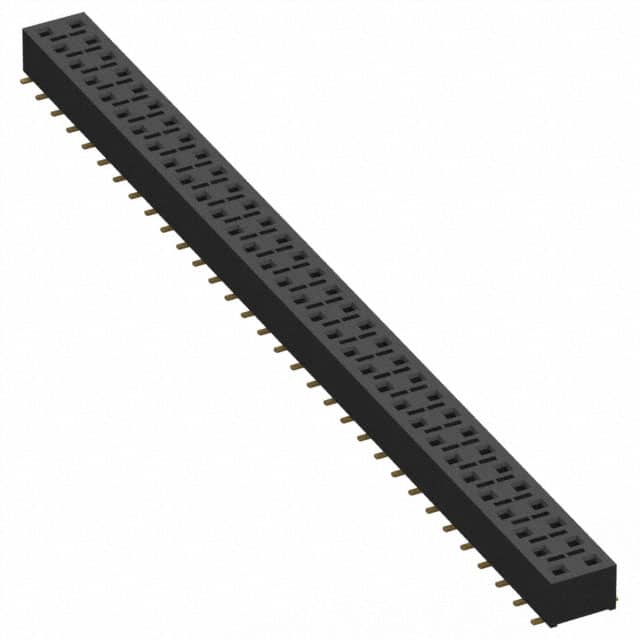

The Samtec HLE-132-02-G-DV-P is a 64 position, double row receptacle socket strip with a 2.54mm pitch and row spacing. It features the Tiger Beam contact system, designed for high reliability and extended life. The connector is rated for 4.1A per contact and 400VAC, with an operating temperature range of -55°C to 125°C.
The receptacle is through hole mounted and terminated via solder. It has a push-pull fastening type and a vertical orientation. The insulation is black with a height of 3.66mm. The connector supports pick and place assembly and offers top and bottom entry pass-through options for flexible board stacking.
The HLE-132-02-G-DV-P is packaged in tubes with 7 pieces per tube. The contacts have a gold finish with 0.51µm thickness. This part is RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.24 | $11.24 |
| 7+ | $11.22 | $11.22 |
| 28+ | $10.04 | $10.04 |
| 56+ | $9.55 | $9.55 |
| 105+ | $9.35 | $9.35 |
| 252+ | $8.78 | $8.78 |
| 504+ | $7.69 | $7.69 |
| 1,001+ | $7.16 | $7.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 64 positions in 2 rows, all positions loaded.
The current rating is 4.1A per contact.
The voltage rating is 400VAC.
The mounting type is through hole, though there is a conflict with existing data indicating surface mount. Verify with official datasheet.
