| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

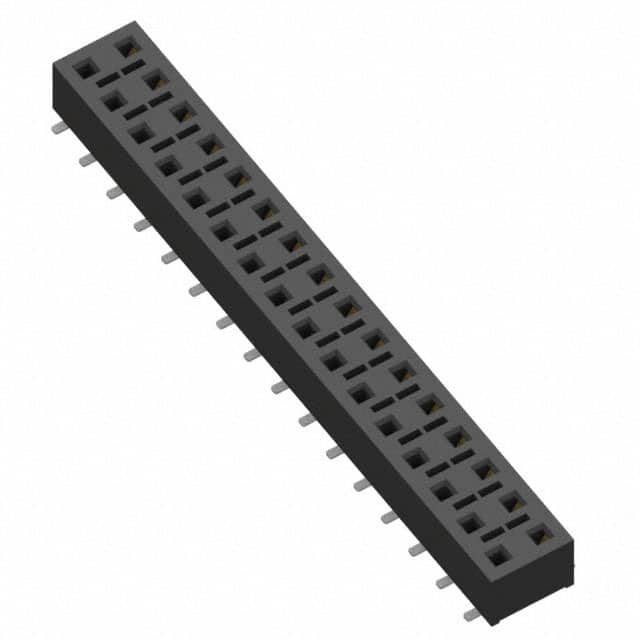

The Samtec HLE-116-02-S-DV-P-TR is a 32-position receptacle from the HLE series, designed for board-to-board applications. It features a 2.54mm (0.100 inch) pitch with 2 rows of female socket contacts. The connector is surface mount (SMT) with solder termination and a push-pull fastening mechanism.
Electrical ratings include 4.1A per contact current capacity and 400VAC voltage rating. The operating temperature range is -55°C to 125°C. Contacts are finished with 0.76µm (30µin) of tin. The black insulation has a height of 3.66mm. This part includes a pick-and-place feature for automated assembly.
The connector is RoHS3 compliant and has an MSL of 1 (unlimited). It is suitable for use in industrial, automotive, and commercial electronics where reliable board-to-board connections are required.
| Qty | Low | High |
|---|---|---|
| 675+ | $5.64 | $5.64 |
| 1,350+ | $4.80 | $4.80 |
| 2,025+ | $4.19 | $4.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 32 positions, all loaded, in 2 rows.
The pitch is 2.54mm (0.100 inches) with the same row spacing.
It is rated for 4.1A per contact.
The voltage rating is 400VAC.
It uses surface mount (SMT) with solder termination.
The operating temperature range is -55°C to 125°C.
Yes, it is listed as RoHS3 Compliant (unverified).
