| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
227 pcs
|
227 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

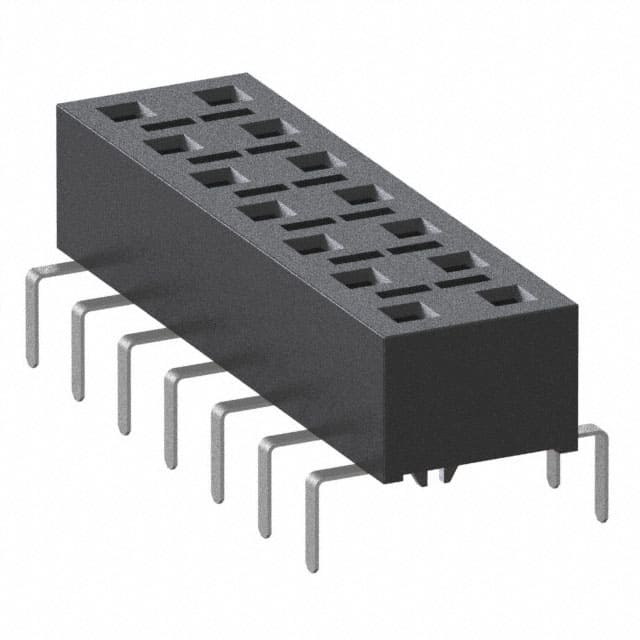

The HLE-107-02-S-DV-PE-BE-LC is a 14-position (loaded all) through-hole receptacle from Samtec's HLE series. It features a 2.54mm pitch and 0.100" row spacing, designed for board-to-board stacking applications. The connector uses female socket contacts with tin finish (30.0µin) and offers a push-pull fastening type with board lock for secure mounting.
Electrical specifications include a current rating of 4.1A per contact and a voltage rating of 400VAC. The operating temperature range is -55°C to 125°C, making it suitable for a wide variety of environments. The insulation height is 3.50mm and the contact length is 2.29mm.
Mounting is through-hole with solder termination. The connector is RoHS3 compliant (unverified) and has an MSL rating of 1 (unlimited). It is designed for reliable board-to-board interconnections in industrial, automotive, and consumer electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.81 | $4.81 |
| 25+ | $4.58 | $4.58 |
| 50+ | $4.31 | $4.31 |
| 96+ | $3.94 | $3.94 |
| 512+ | $3.70 | $3.70 |
| 1,024+ | $3.29 | $3.29 |
| 2,528+ | $2.94 | $2.94 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 14 positions, all loaded, arranged in 2 rows.
The pitch is 2.54mm (0.100").
The current rating is 4.1A per contact (nominal).
The voltage rating is 400VAC.
It uses through-hole mounting with solder termination.
The operating temperature range is -55°C to 125°C.
The connector uses a push-pull fastening with a board lock feature.
