| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

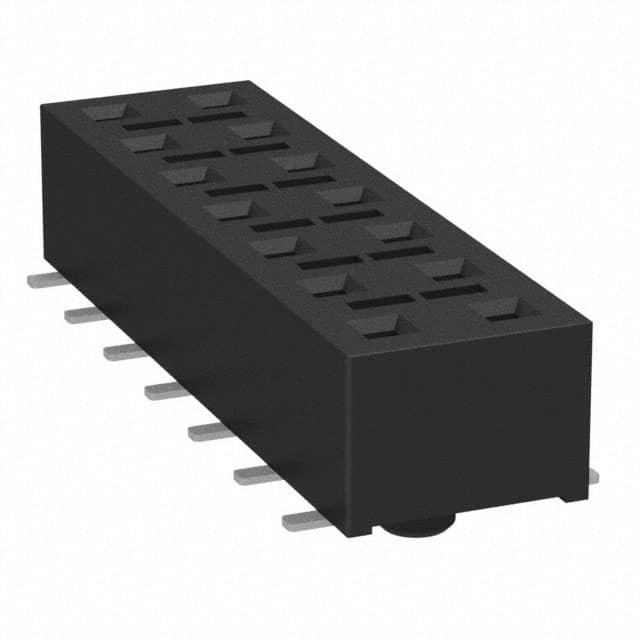

The Samtec HLE-107-02-S-DV-A-K is a 14 position, 2 row, 2.54mm pitch surface mount receptacle designed for board-to-board applications. It features a push-pull fastening type and tin-plated female socket contacts with a 30.0µin tin finish. The connector is rated for 4.1A per contact and 400VAC, with an operating temperature range of -55°C to 125°C.
This receptacle includes board guide and pick and place features for automated assembly. The black insulation has a height of 3.66mm. All 14 positions are loaded, and the connector uses solder termination for surface mount attachment.
Designed for reliable board-to-board interconnects, this connector is suitable for a variety of electronic assemblies requiring a compact, high-density interface. The 2.54mm pitch and 2.54mm row spacing provide a standard footprint for many PCB layouts.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.11 | $5.11 |
| 25+ | $4.78 | $4.78 |
| 50+ | $4.42 | $4.42 |
| 96+ | $4.09 | $4.09 |
| 512+ | $3.88 | $3.88 |
| 1,024+ | $3.48 | $3.48 |
| 2,528+ | $2.99 | $2.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14 positions, all loaded, in 2 rows.
2.54mm (0.100") pitch with 2.54mm (0.100") row spacing.
4.1A per contact.
400VAC.
Surface mount with solder termination.
-55°C to 125°C.
Tin with 30.0µin (0.76µm) thickness.
