| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
75 pcs
|
75 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Storage Temperature | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

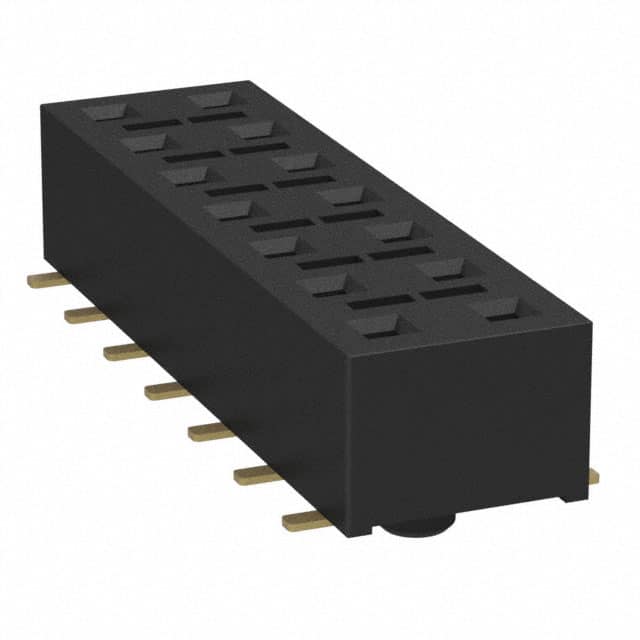

The Samtec HLE-107-02-G-DV-A-K-TR is a 14 position board to board receptacle from the HLE series. It features a 2.54mm pitch and 2 rows with all positions loaded. The connector uses female socket contacts with a gold finish of 20.0µin (0.51µm) for reliable signal integrity. It is rated for 4.1A per contact and 400VAC, with an operating temperature range of -55°C to 125°C. The housing is black with a push-pull fastening type and includes board guide and pick and place features for automated assembly. This surface mount connector uses solder termination and has an insulation height of 3.66mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.91 | $4.91 |
| 10+ | $4.17 | $4.17 |
| 100+ | $3.55 | $3.55 |
| 575+ | $2.95 | $2.95 |
| 1,150+ | $2.75 | $2.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14 positions, all loaded, in 2 rows.
2.54mm (0.100").
4.1A per contact.
400VAC.
Surface mount with solder termination.
-55°C to 125°C.
Gold, 20.0µin (0.51µm) thickness.
