| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

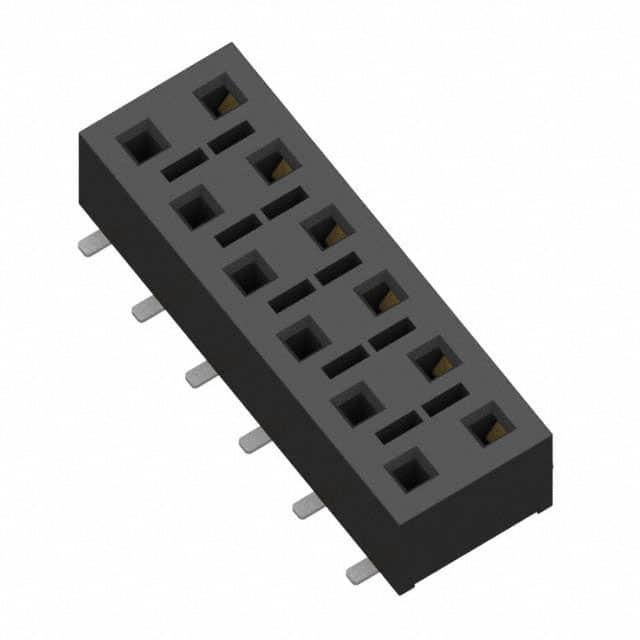

The Samtec HLE-106-02-L-DV-BE-K-TR is a 12-position, 2-row, 2.54mm pitch surface mount receptacle designed for board-to-board applications. It features bottom entry female socket contacts with a tin finish (0.25µm thickness) and a black insulation body with a push-pull fastening mechanism.
Electrical ratings include 4.1A per contact and 400VAC, with an operating temperature range of -55°C to 125°C. The connector is pick-and-place compatible and uses solder termination.
This receptacle is suitable for dense PCB layouts requiring reliable board-to-board interconnects. The 2.54mm pitch and row spacing align with standard header configurations.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.20 | $3.20 |
| 50+ | $3.18 | $3.18 |
| 100+ | $2.66 | $2.66 |
| 500+ | $2.46 | $2.46 |
| 800+ | $2.06 | $2.06 |
| 1,600+ | $1.89 | $1.89 |
| 4,800+ | $1.64 | $1.64 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions, all loaded, in 2 rows.
2.54mm (0.100") pitch with 2.54mm row spacing.
4.1A per contact.
400VAC.
Surface mount with solder termination.
