| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
53 pcs
|
53 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish (Mating Area) | |
| Contact Finish - Tail | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Lead-Free Solderable | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

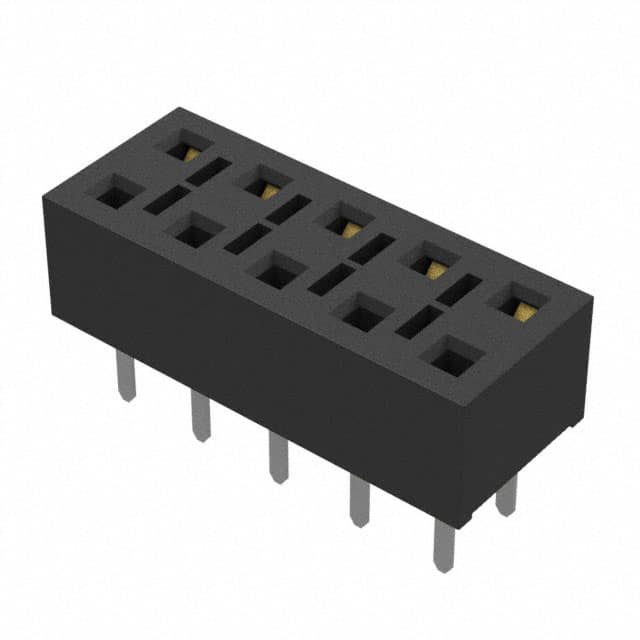

The Samtec HLE-105-02-S-DV-TE is a 10-position, 2-row, through-hole receptacle from the HLE series. It features a push-pull fastening type and a black liquid crystal polymer insulator. The contacts are beryllium copper with a gold flash on the mating area and matte tin on the tail, rated for 4.1A per contact (2 pins powered) and 400VAC. The operating temperature range is -55°C to +125°C. This board-to-board style connector has a 2.54mm pitch and row spacing, with an insulation height of 3.50mm and a contact length of 3.05mm. It is lead-free solderable and designed for through-hole solder termination.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.20 | $3.20 |
| 45+ | $3.19 | $3.19 |
| 90+ | $2.42 | $2.42 |
| 540+ | $2.30 | $2.30 |
| 1,035+ | $2.29 | $2.29 |
| 2,025+ | $2.18 | $2.18 |
| 5,040+ | $1.74 | $1.74 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54 mm (0.100 inches).
It has 10 positions, all loaded, in 2 rows.
The maximum current rating is 4.1 A per contact (2 pins powered).
The maximum voltage rating is 400 VAC.
It is a through-hole mounting type with solder termination.
