| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
79 pcs
|
79 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

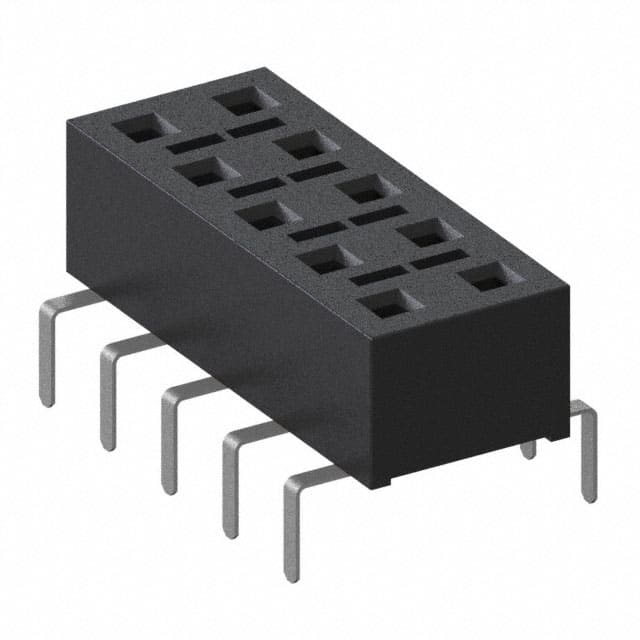

The HLE-105-02-S-DV-PE-BE is a 10 position receptacle connector from Samtec, designed for board-to-board applications. It features a bottom entry, pass through design with a push-pull fastening type. The connector has a 2.54mm pitch and dual row configuration with all positions loaded.
This through hole mounted connector is rated for 4.1A per contact and 400VAC, making it suitable for signal and power transmission. The operating temperature range is -55°C to 125°C. The insulation is black with a height of 3.50mm, and the contact finish is tin with a thickness of 30.0µin.
The connector uses female socket contacts and solder termination. The contact length is 2.29mm and row spacing is 2.54mm. It is designed for reliable connections in various electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.77 | $3.77 |
| 25+ | $3.69 | $3.69 |
| 45+ | $3.36 | $3.36 |
| 90+ | $3.13 | $3.13 |
| 540+ | $2.89 | $2.89 |
| 1,035+ | $2.62 | $2.62 |
| 2,520+ | $2.43 | $2.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions.
2.54mm (0.100").
4.1A per contact.
400VAC.
Through hole.
-55°C to 125°C.
Tin.
