| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | 542 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

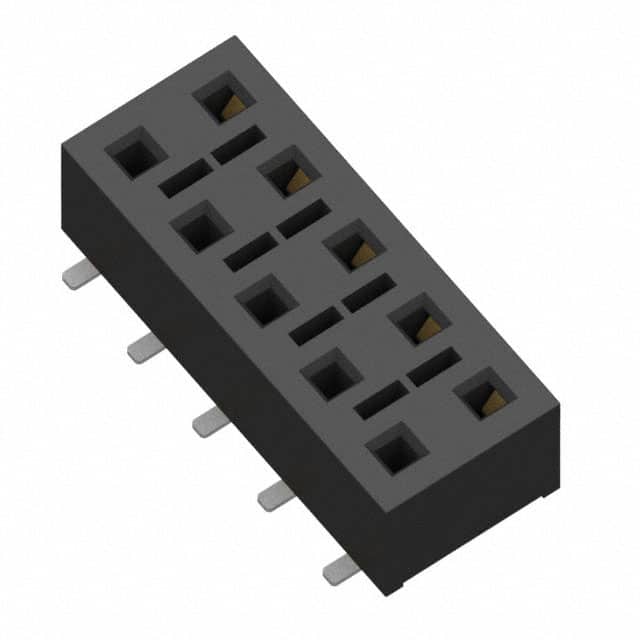

The HLE-105-02-S-DV-K is a 10-position receptacle from Samtec Inc. designed for board-to-board interconnections. It features a 2-row configuration with 2.54mm pitch and 2.54mm row spacing, providing a compact 10-position layout. The connector has a push-pull fastening type and is surface mount with solder termination. The insulation is black with a height of 3.66mm. Contacts are tin-plated with a thickness of 30µin (0.76µm). The current rating is 4.1A per contact, voltage rating is 400VAC, and operating temperature range is -55°C to 125°C. Features include pick and place for automated assembly. The part is RoHS compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.77 | $3.77 |
| 25+ | $3.58 | $3.58 |
| 45+ | $3.47 | $3.47 |
| 90+ | $3.18 | $3.18 |
| 540+ | $2.95 | $2.95 |
| 1,035+ | $2.63 | $2.63 |
| 2,520+ | $2.10 | $2.10 |
| 5,040+ | $2.06 | $2.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions, 2 rows, all loaded.
2.54mm (0.100").
4.1A per contact.
400VAC.
Surface mount.
Tin, 30µin (0.76µm).
-55°C to 125°C.
