| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
32 pcs
|
32 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

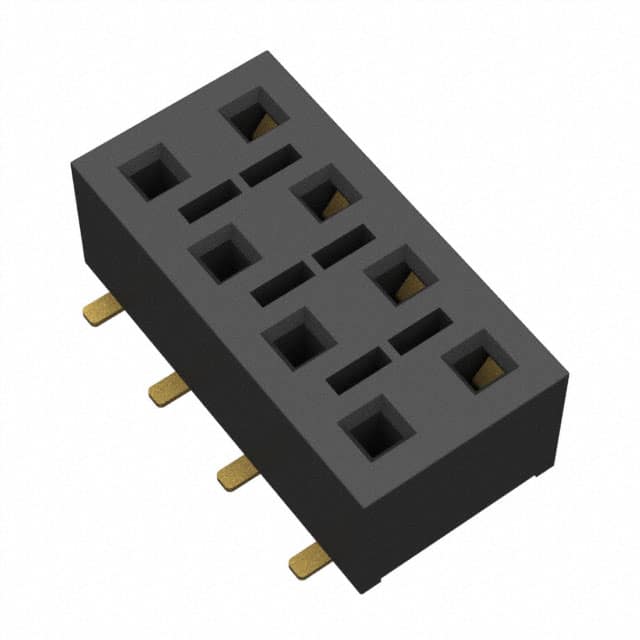

The Samtec HLE-104-02-G-DV-K is a board-to-board receptacle connector featuring 8 positions arranged in 2 rows with a 2.54mm pitch and row spacing. It uses female socket contacts with a 20.0µin gold finish for reliable signal integrity. The connector is surface mount with solder termination and a push-pull fastening type.
This receptacle is rated for 4.1A per contact and 400VAC, with an operating temperature range of -55°C to 125°C. The black insulation has a height of 3.66mm. It includes a pick and place feature for automated assembly.
Designed for board-to-board applications, this connector is RoHS3 compliant and has an MSL of 1 (unlimited). All 8 positions are loaded.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.71 | $2.71 |
| 56+ | $2.28 | $2.28 |
| 112+ | $2.10 | $2.10 |
| 504+ | $2.00 | $2.00 |
| 1,008+ | $1.94 | $1.94 |
| 2,016+ | $1.68 | $1.68 |
| 5,040+ | $1.56 | $1.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 8 positions arranged in 2 rows.
The current rating is 4.1A per contact.
The voltage rating is 400VAC.
Surface mount with solder termination.
-55°C to 125°C.
Gold with a thickness of 20.0µin (0.51µm).
