| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
570 pcs
|
570 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| Current Rating (Maximum @ at 2400 MHz) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Q Factor (Typical @ 1900 MHz) | |
| Q Factor (Typical @ 2400 MHz) | |
| Q Factor (Typical @ 900 MHz) | |
| Self Resonant Frequency | |
| Shielding | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Termination Style | |
| Tolerance | |
| Type | |
| Width | |
| dcr (Maximum @ at 2400 MHz) | |
| inductance (Minimum @ 1900 MHz) | |
| inductance (Minimum @ 2400 MHz) | |
| inductance (Minimum @ 450 MHz) | |
| inductance (Minimum @ 900 MHz) |

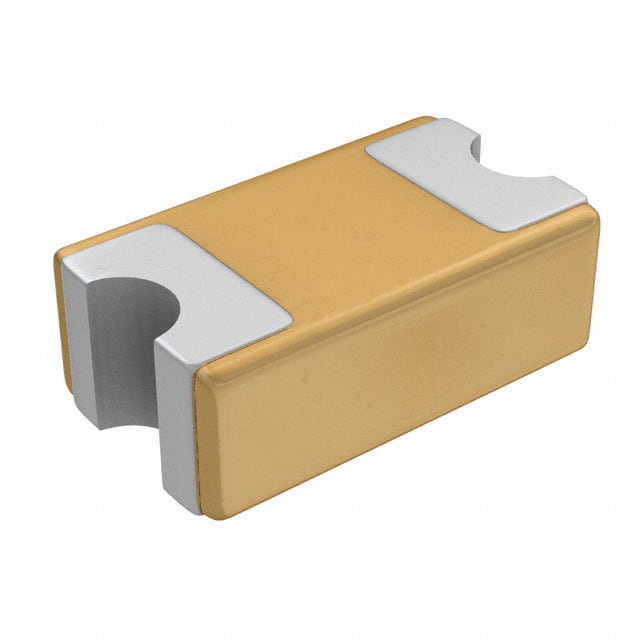

The Kyocera AVX HLC02220HTTR is a multilayer fixed inductor with an inductance value of 22 nH and a tolerance of ±3%. It is designed for surface mounting and comes in an 0402 (1005 Metric) package.
This inductor offers a current rating of 202 mA and a maximum DC resistance of 1.9 Ohms. It operates within a temperature range of -55°C to 125°C and has a typical Q factor of 30 at 450MHz, with a self-resonant frequency of 3GHz.
The MLO™ High Current Inductors, including this part, are based on AVX's patented multilayer organic technology. They are suitable for applications such as mobile communications, satellite applications, GPS, matching networks, and collision avoidance. The non-magnetic material and unshielded construction are key features.
Key electrical specifications include an inductance of 22 nH, a current rating of 202 mA, and a DC resistance of 1.9 Ohms Max. The operating temperature range is -55°C to 125°C. The component is surface mountable and housed in a compact 0402 case size.
The inductance is 22 nH.
The current rating is 202 mA.
The maximum DC resistance is 1.9 Ohms.
The operating temperature range is -55°C to 125°C.
It is available in the 0402 (1005 Metric) package size.
