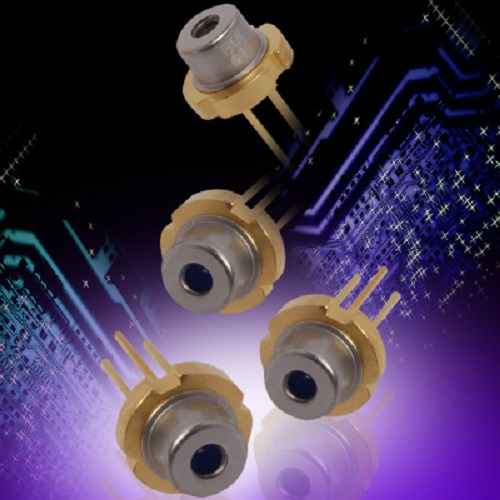

The Ushio HL6361MG-A is a high-performance red laser diode emitting at a wavelength of 639 nm. This diode operates in a single transverse electric (TE) mode, ensuring a stable and circular beam profile.
Key specifications include a typical optical output power of 20 mW (CW) and a typical operating current of 65 mA. The maximum operating voltage is 2.5 V, with a threshold current ranging from 45–60 mA. The beam divergence is approximately 6°–12° parallel to the junction and 16°–24° perpendicular to the junction.
Housed in a standard 5.6 mm TO-Can package, the HL6361MG-A is designed for low power consumption. It features an integrated monitor photodiode for output power monitoring. The diode is suitable for various industrial and sensing applications.
This laser diode operates within a temperature range of -10°C to +50°C, making it versatile for diverse environmental conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical wavelength is 639 nm.
The typical optical output power is 20 mW (CW).
The typical operating current is 65 mA.
The maximum operating voltage is 2.5 V.
It is housed in a 5.6 mm TO-Can package.
It operates in Transverse Electric (TE) mode.
